Tektronix DC5009 : Main Features and Specifications
|
| Min. Freq. |
1 Hz |
| Max. Freq. |
1.3 GHz |
| Freq. Resolution [Digits] |
? |
| Measurements |
Frequency, Period, Ratio, Count totalization, Event, Pulse width |
| Status |
discontinued |
Launch Date
| -- |
| Discontinued on | -- |
| Supported until | -- |
| See also | DC 509 |
 Tektronix DC5009 Specs (214.1 KB)
|
|
|
| Tektronix DC5009 Features : |

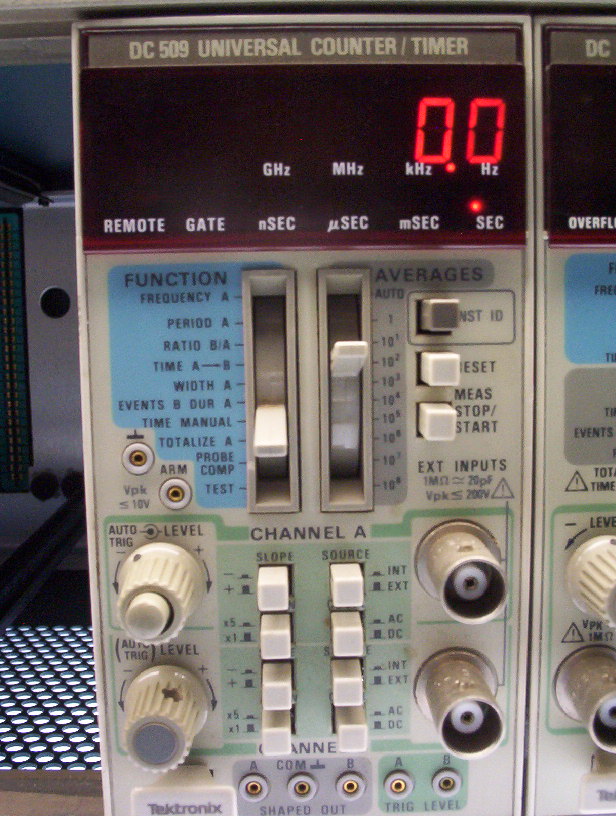

The DC 5009/ DC 509 sigle-width Universal Counter/Timers provide all of meaasurement functions of the higher performance DC 5010/ DC 510 except rise time/fall time,null, and totalize A+-B.
The powerfull reciprocal-frequency measurement technique allows up to eight digits of resolution of low frequency signals in one second or less of measurement time.
The DC 5009/ DC509 has the same automatic averaging feature as the DC 5010 / DC 510; selected averaging of up to 10(8) events provides usable time-interval resolution of 5 ps.
- 135 MHz both A and B channels
- 10ns single-shot resolution 8-digit display
- 5 ps resolution with averaging
- Duty-cycle independent autotrigger
- Shaped A and B outputs
- Probe compensation
- High stability oven time base
|
|
|
