BK Precision 4040A:

8 found Specs Page 1 of 1  PREV   NEXT
At Used-Line.com, you'll find BK Precision 4040As from trusted, professional sellers around the globe at a variety of different prices. Get a quote now from one of our trusted sellers for a BK Precision 4040A - find what you need quickly and easily. If you don’t find what you’re looking for in the 4040A listings below, post a wanted ad to our database of thousands of equipment dealers.
Location Price
Get Pricing and Quotes -
4040A - BK Precision Function Generators Call
BK-4040A B&K Precision 4040A Sweep Function Generator, 20 MHz $629
BK Precision 4040A 20MHz Sweep/Function Generator Call
* Rental * BK Precision 4040A 20MHz Sweep/Function Generator Call
BK PRECISION 4040A 20 MHz Sweep Function Generator $669


BK Precision 4040A (4000 Family) Main Features and Specifications

BK Precision 4040A

Frequency Range Min.  200.0 mHz
Frequency Range Max.  20.0 MHz
Freq. Resolution  --
Waveform Outputs  Sine, Square, Triangle, Ramp, Pulse
Modulation  AM, FM
Status -
BK Precision

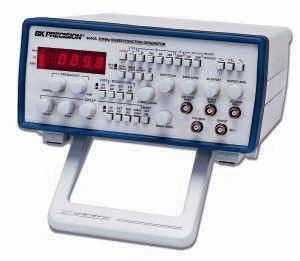

The 4040A Sweep/Function Generator with Frequency Counter generates sine, square, triangle, ±pulse, and ±ramp in the frequency range from 0.2Hz to 20MHz in 8 ranges. Output is read on a 5-digit LED readout. Output level is 20 v p-p open circuit, or 10 v p-p into 50 ohms. Has built-in frequency counter good to 30MHz. Also capable of Burst operation which can be sourced both internal and external. The burst is continuously variable from 5% to 90% of internal gating frequency. VCG input is 0 to 10 v.

  • 0.2 Hz to 20 MHz
  • AM & FM modulation
  • Burst Operation
  • External frequency counter to 30MHz
  • 5-digit LED display
  • Linear and log sweep
  • Sine, Square, Triangle, Pulse & Ramp output
  • Course and Fine tuning
  • Variable duty cycle
  • Variable DC offset
