GW Instek SFG-1013:

5 found Specs Page 1 of 1  PREV   NEXT
At Used-Line.com, you'll find GW Instek SFG-1013s from trusted, professional sellers around the globe at a variety of different prices. Get a quote now from one of our trusted sellers for a GW Instek SFG-1013 - find what you need quickly and easily. If you don’t find what you’re looking for in the SFG-1013 listings below, post a wanted ad to our database of thousands of equipment dealers.
Items from the last 24 Hours / Week / Month
Location Price
Get Pricing and Quotes -
GW INSTEK SFG-1013 DDS Function Generator 0.1Hz~3MHz Opts: $190
Instek SFG-1013 3 MHz DDS Function Generator with Voltage Display $190
Instek SFG-1013 Function Generator, 0.1Hz to 3MHz w/Voltage Display $190
Instek SFG-1013 3MHz DDS Function Generator with Voltage Display $190
GW Instek SFG-1013 Function Generator $190


GW Instek SFG-1013 (SFG-1000 Series) Main Features and Specifications

GW Instek SFG-1013

  GW Instek SFG-1013 Specs (72.5 KB)
Frequency Range Min.  100.0 mHz
Frequency Range Max.  3.0 MHz
Freq. Resolution  100 mHz
Waveform Outputs  Sine, Square, Triangle, TTL
Modulation  --
Status -
See also SFG-1003
GW Instek

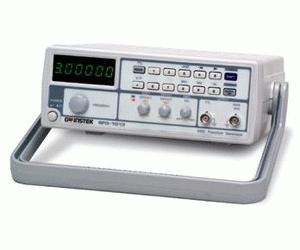

The SFG-1013 is a 3 MHz DDS function generator. The SFG-1000 is an economical series of function generators with high accuracy and highly stable output. The design is based on the DDS (Direct Digital Synthesized) technology embedded in a large scale FPGA. The function generator provides Sine, Square, Triangle, and TTL waveform outputs. The SFG-1013 also features a voltage display.

  • DDS Technology and FPGA Chip Design
  • Frequency Range: 0.1Hz~3MHz
  • High Frequency Accuracy: ± 20ppm
  • High Frequency Stability: ± 20ppm
  • Maximum Frequency Resolution: 100mHz
  • Low Distortion Sine Wave: -55dBc, 0.1Hz~200kHz
  • Voltage display
