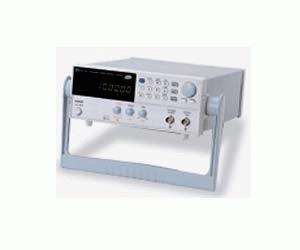

|GW Instek SFG-2110 Function Generator; 10MHZ, w/Ext. counter, sweep, A||$399|
|GW Instek SFG-2110 DDS Technology and FPGA Chip Design Frequency Rang||Call|
|GW INSTEK SFG-2110 DDS Function Generator 0.1Hz~10MHz Opts:||$420|
|Instek SFG-2110 10MHz DDS Function Generator w/Ext. counter, sweep, AM||$420|
|Instek SFG-2110 10MHz DDS Function Generator with Counter, Sweep and M||Call|
|Frequency Range Min.||100.0 mHz|
|Frequency Range Max.||10.0 MHz|
|Freq. Resolution||100 mHz|
|Waveform Outputs||Sine, Square, Triangle, TTL, CMOS, DC Offset|
|Modulation||AM, FM, LIN/LOG Sweep|
Based on the Direct Digital Synthesized (DDS) technology and unique FPGA design, the SFG-2000 and SFG-2100 Series Function Generators are built with exceptionally high performance far exceeding that of any conventional function generators at a very competitive price. Stable output frequency, low distortion, and fine frequency resolution are the most remarkable characteristics of this product series.
The SFG-2000 and SFG-2100 Series include four members in each family at 4MHz, 7MHz, 10MHz and 20MHz bandwidth. As a result of the 20ppm stability level and output waveform accuracy, the SFG-2000 and SFG-2100 Series fit into a wide variety of applications, such as signal generator for experiment labs, reference signal for PLL (Phase Locked Loop), and calibration and adjustment source for electronic devices.
The SFG-2000 and SFG-2100 Series provide Sine, Triangle and Square waveforms with DC offset and variable duty cycle at 20ppm frequency stability and accuracy. The low drift rate and -55dBc low sine wave distortion output significantly extend product application ranges in various market sectors.
The TTL/CMOS output is also available to fulfill various requirements. In addition to the basic functions, the SFG-2100 Series provides advanced functions such as AM/FM modulation, sweep mode, and a built-in frequency counter.
The SFG-2000 and SFG-2100 Series generate signals by continuously delivering a series of sampling values from a sine waveform table (stored in RAM) to a DAC (Digital to Analog Converter) for waveform construction. With a low pass filter circuit to filter out the harmonics of the DAC output and smooth the signal, the SFG-2000 and SFG-2100 Series are able to provide a stable output with very low waveform distortion.
Specifications for the SFG-2110:
