Tektronix AFG2020:

12 found Specs Page 1 of 1  PREV   NEXT
At, you'll find Tektronix AFG2020s from trusted, professional sellers around the globe at a variety of different prices. Get a quote now from one of our trusted sellers for a Tektronix AFG2020 - find what you need quickly and easily. If you don’t find what you’re looking for in the AFG2020 listings below, post a wanted ad to our database of thousands of equipment dealers.
Items from the last 24 Hours / Week / Month
Location Price
Get Pricing and Quotes -
Tektronix AFG2020 Synthesized Arbitrary Function Gen. Opts: $1695
Tektronix AFG2020 The AFG 2020 DDS Synthesized Arbitrary Function Gen Call
Tektronix AFG2020-02 Arbitrary Function Generator $3495
Tektronix AFG2020 Programmable Arbitrary Function Generator The AFG 20 $5795

Tektronix AFG2020 (DDS Synthesized Arbitrary Function Generators) Main Features and Specifications

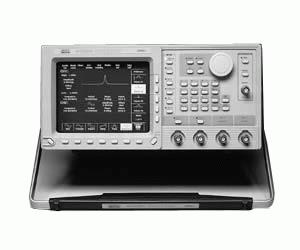

Tektronix AFG2020

Frequency Range Min.  10.0 mHz
Frequency Range Max.  11.0 MHz
Freq. Resolution  --
Waveform Outputs  Sine, Square, Triangle, Ramp, Arbitrary, Pulse
Modulation  AM, FM, LIN/LOG Sweep, PSK, FSK
Status Discontinued

The AFG 2020 DDS Synthesized Arbitrary Function Generator outputs precise standard, modulation, sweep, and arbitrary waveshapes.

  • An Integrated Signal Source For Benchtop Or System Use ­ Fast, Precise, Easy-To-Use Signal Generator With Modulation, Sweep, And Arbitrary Capabilities
  • Built-In High-Resolution Monitor With Graphical User Interface
  • 12-Bit (1/4096) Vertical Resolution
  • 250 MHz, 1 ppm Accuracy, 0.5 Hz (10 digits) Resolution Clock
  • 16 Separate Arbitrary Waveforms With 1K (1024 points) Record Lengths
  • Standard Waveforms: Sinewave - 0.5 Hz to 100 MHz Square wave - 0.5 Hz to 50 MHz Triangle, ramp, and pulse - 0.5 Hz to 31.2 MHz
  • Internal AM, FM, PSK, and FSK Modulation
  • External AM Modulation
  • Built-In Linear/Log
  • Sweep Built-In Trigger Delay (700 ns to 100 s)
  • Direct DSO Waveform Transfers Without A Controller
  • Second Channel With Fully Independent Execution (Option 02)
