Anritsu MG3601A Minimum Frequency 0.1 MHz Maximum Frequency 1040 MHz Call
Anritsu MG3601A 1040 MHz Synthesized Signal Generator Call
Anritsu MG3601A THe MG3601A/3602A are synthesized signal generators wi Call
The MG3601A is a 1.04 GHz RF Generator from Anritsu. An RF generator Call


Anritsu MG3601A (Synthesized Signal Generators) Main Features and Specifications

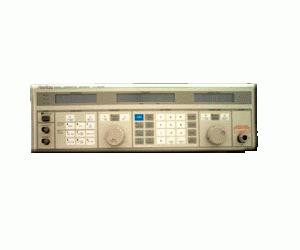

Anritsu MG3601A

Frequency Range Min.  100.0 kHz
Frequency Range Max.  1.04 GHz
Modulation  AM, FM, Phase
Output Power  -133 dBm to +13 dBm
Freq. Resolution  10.0 Hz
Status Discontinued
Discontinuance Date Jan-2005
See also MG3602A
Anritsu
  • Minimum Frequency 0.1 MHz
  • Maximum Frequency 1040 MHz
  • Frequency Resolution 10 Hz
  • Time base stability 0.000002 /day
  • Minimum Output Power -133 dBm
  • Maximum Output Power 13 dBm
  • Power Resolution 0.1 dB
  • Output Accuracy 1 dB
  • Output Impedance 50 Ohm
  • Minimum Single-Side-Band Noise -129 dBc/Hz
  • Maximum Single-Side-Band Noise -117 dBc/Hz
  • Harmonics (noise) -25 dBc
  • Non-harmonics (noise) -60 dBc
  • Modulation AM,FM,Phase
  • External Modulation Inputs(Types) Yes
  • SSB Phase noise <= -123 dBc/Hz (fc:500 MHz, f: 20 kHz), Residual FM: <=4Hz (fc: 500 MHz)
  • Excellent operability as result of relative value display, frequency memory (100 frequencies), and function memory (30 set of panel settings)
