3500 - Aeroflex Signal Generators Call
Aeroflex 3500 At only 8 lbs, and packaged in a solid aluminum weather Call


Aeroflex 3500 (Radio Test Sets (RF Signal Generator)) Main Features and Specifications

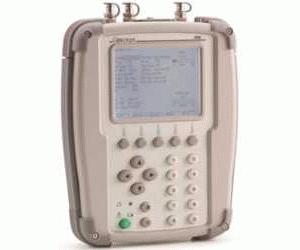

Aeroflex 3500

  Aeroflex 3500 Specs (269.1 KB)
Frequency Range Min.  2.0 MHz
Frequency Range Max.  1.00 GHz
Modulation  AM, FM
Output Power  -50 to -120 dBm (T/R port)
Freq. Resolution  1.0 Hz
Status Discontinued
Launch Date Jul-2008
Aeroflex

At only 8 lbs, and packaged in a solid aluminum weatherproof case, the Aeroflex 3500 is the first truly rugged, portable radio test set. Combining the features of a benchtop radio test set with up to 7 hours of battery life, the Aeroflex 3500 is a test set that is ready to be used anywhere. The 3500 is perfect for testing AM and FM radio transceivers, whether on a bench, installed in a vehicle, or in some remote location. It also has the power to test the cables and antennas, making it the only handheld radio test set that can test all the components of an installed radio system.

  • 2 MHz - 1 GHz operation
  • AM/FM transmitter and receiver tests
  • Spectrum Analyzer with -136 dBm noise floor
  • Oscilloscope option
  • Antenna/Cable tests
  • New Save/Recall operation
  • Improved User Interface
  • AM and FM Modulation meter
  • Accurate RSSI measurement
  • Measuring high power (20 watts without an external attenuator, up to 150 watts with an external attenuator)
  • AF Generator and Modulator
  • RF Frequency Error meter
  • SINAD and Distortion measurement
  • DCS Generator
  • Audio Frequency Counter
  • Distance To Fault (DTF) measurement
  • VSWR and Return Loss measurement
  • Cable Loss measurement
  • Weighs only 8 lbs
  • 5 hour battery life with continuous use
  • 20° to +50° C operating temperature range
  • Rugged construction (specifications for humidity, altitude, shock, and vibration, MIL PRF 28800F Class II Certified)
