Anritsu 68137C:

1 found Specs Page 1 of 1  PREV   NEXT
Items from the last 24 Hours / Week / Month
Location Price
Get Pricing and Quotes -
68137C The Anritsu 68C/ 69B series are your best choice for A.T.E. ap Call

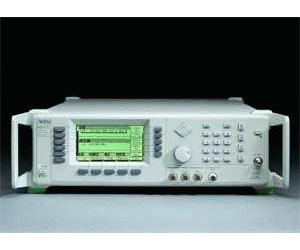

Anritsu 68137C (68C Family Signal Generators) Main Features and Specifications

Anritsu 68137C

  Anritsu 68137C Specs (35 KB)
Frequency Range Min.  2.0 GHz
Frequency Range Max.  20.00 GHz
Modulation  AM, FM
Output Power  +13 dBm to -15 dBm (-20 dBm typical) ;with an attenuator -120 dBm
Freq. Resolution  100.0 mHz
Status Discontinued
Alternative MG3690A Series
See also 68117C , 68147C , 68167C , 68177C , 68187C , 68197C
Anritsu

The Anritsu 68C/69B series are your best choice for A.T.E. applications. They pack the highest performance available in a single 13.3 cm package to minimize rack space. High output power assures adequate signal strength to the device under test even after A.T.E. switching and cabling losses.

Accurately leveled output power to –120 dBm in 0.01 dB steps facilitates receiver sensitivity measurements. Fast 5 ms switching time maximizes system throughput. Internal list mode frees the A.T.E. controller to perform measurement analysis tasks. Optional SCPI programmability and free application drivers, including the IVICOM driver and National Instruments LabView® drivers, save you time and money in code generation and maintenance.

The 68100C series are your ideal component test signal sources. Analyze key communications, electronic warfare and RADAR components at baseband, IF and carrier frequencies to 65 GHz. Analyze extremely high-Q components with the optional 0.1 Hz frequency resolution. Step sweep mode delivers synthesized frequency accuracy, or choose analog sweep for the fastest possible sweep times.

 With <–60 dBc specified spurious levels, network analysis and power measurement errors are eliminated. Compression measurements are simple with the 0.01 dB resolution available in power sweep mode.

Sophisticated master/slave capability permits two synthesizers to sweep synchronously for mixer or frequency converter measurements. Up, down, harmonically related, and many other inter-dependent sweeps can be configured with the digitally-controlled master/slave capability.

  • Broad frequency coverage including 0.1 Hz to 65 GHz in a single coax output
  • Ultra-low SSB phase noise and spurious
  • +17 dBm guaranteed leveled power to 20 GHz
  • 0.1 Hz optional frequency resolution
  • <5 ms switching time for <100 MHz sweep steps
  • Digital frequency sweep and digital power sweep
  • Wide dynamic range with accurate output levels
  • Intuitive, menu-driven front panel
