Tektronix 7A26

Send Request
  • Ask for price

Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of Tektronix 7A26

Categories: Amplifiers, Dual Trace Amplifiers

Manufacturer: Tektronix

Model: 7A26

Condition: Used

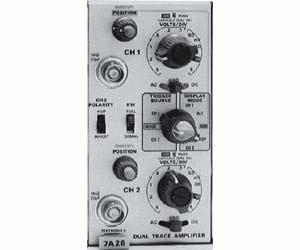

Tektronix 7A26 Dual Trace Plug In 200MHz for 7000 Series Oscilloscope

Product specifications of Tektronix 7A26 (From Used-Line T&M Specifications)

  • Launch Date Jan-2049
  • Alternative No alternative or replacement products
  • Status Discontinued by Manufacturer

The 7A26 is a dual-trace plug-in amplifier, and is a basic building block for 3- or 4-trace operation. It is designed for use with the Tektronix 7000 Series oscilloscopes. It features constant bandwidth for all deflection factors, 5 operating modes (Ch 1, Ch 2, ALT, CHOP, ADD), trigger source selection (CH 1, CH 2, MODE), and color-keyed control groupings. Internal gain and compensation circuits are automatically switched to correspond to the setting of the VOLTS/DIV switch. Polarity of channel 2 is selectable. Bandwidth may be set at FULL or limited to 20 MHz for low-frequency applications.

  • DC to 200 MHz bandwidth
  • 5 mV/div to 5 V/div calibrated deflection factors
  • 1 MΩ input
  • 250 V maximum DC coupled input voltage (DC + Peak AC), 500 V maximum AC coupled input voltage (DC + Peak AC)
  • 10 Hz or less lower bandwidth AC coupled frequency response, upper bandwidth depends on oscilloscope
  • At least 10:1 Common-Mode Rejection Ratio
  • 200 ps or less delay time difference between channels
