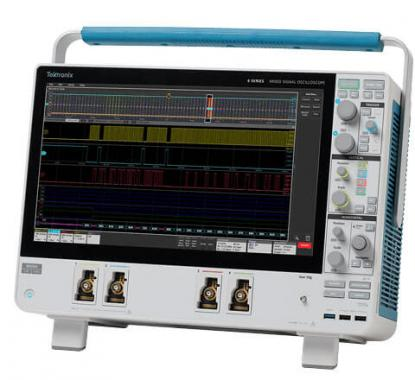

Mixed Signal Oscilloscope, 4 FlexChannels.
Option: 6-BW-6000 = 6GHz Bandwidth.
Unit sold with a valid calibration certificate and with 12 months warranty.
Input Channels:
4 FlexChannel
Each FlexChannel offers one analog signal input or eight digital logic inputs with TLP058-logic probe (optional)
Bandwidth: 6 GHz
Sample rate (all analog/digital channels):
Real time: 25 GS/s
Interpolate: 2.5 TS/s
Record length (all analog/digital channels):
62.5 Mio. points Standard
125 Mio. points and 250Mpts (optional upgrades)
Capture rate: >500.000 Signals/s
Vertical resolution:
12 Bit ADC
Up to 16 Bit in Hi-Res-Mode
Standard trigger types:
Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger
Auxiliary Trigger ≤5 VRMS, 50Ω, 400 MHz (Edge Trigger only)
Standard analysis:
Cursors: Waveform, V Bars, H Bars, V&H Bars
36 Measurements
Plots: Time trend, histogram and spectrum
Math: Arithmetic base signal calulation, FFT and advanced math-editor
Search: search for any trigger criteria
Jitter: TIE and Phase noise
Optional Analysis:
Advanced Jitter and Eye Diagram Analysis
Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains, RF vs. time traces (magnitude, frequency, phase)
Advanced Power Measurements and Analysis
Optional triggering, decode and analysis serial busses:
I2C, SPI, I3C, RS-232/422/485/UART, SPMI, CAN, CAN FD, LIN, FlexRay, SENT, Automotive Ethernet, USB 2.0, Ethernet, I2S, LJ, RJ, TDM, MIL-STD-1553, ARINC 429, Spacewire
Arbitrary function waveform generator:
50 MHz waveform generation
Waveform types: Arbitrary, sine, square, pulse, ramp, triangle, DC-level, Gauß, Lorentz, Exponent. rise and fall, Sin(x)/x, random noise, Haversinus, cardiac
Digital voltmeter:
4-digits voltage measurment the rms values of AC voltage, DC voltage as AC/DC voltage
Trigger frequency counter:
8-digits
Display:
15.6 Zoll (396 mm) Farb-TFT;
High Definition (1920 x 1080);
Capacitive (multitouch capable) touchscreen
Connectivity:
USB host (x6), USB 3.0 device, LAN (10/100/1000 Base-T Ethernet; LXI Compliant), DisplayPort, DVI-D, Video output
e*Scope®:
Diplay and remote control of cscilloscopss via network connection with standard webbrowser
Standard probes:
One passive 10-MΩ-voltage probe with <4 pF capacitive load per channel
(one passive analog probe per FlexChannel:
TPP1000 1 GHz probe at models w/ 1 GHz or 2.5 GHz bandwidth)
Dimension (HxWxD): 309x454x204mm
Weight: 12.88 kg
€ 37,700 (net) $45,240 (US)
