Agilent 8494A

Send Request
  • $2000

Send to a Friend
Flag of Korea (South)Equipment Location: Korea (South)
View Description>
Hide Description

Description of Agilent 8494A

Categories: Coaxial Hardware, Step Attenuators

Manufacturer: Keysight Technologies (Agilent HP)

Model: 8494A

Condition: Used

Seller: Bstarcom

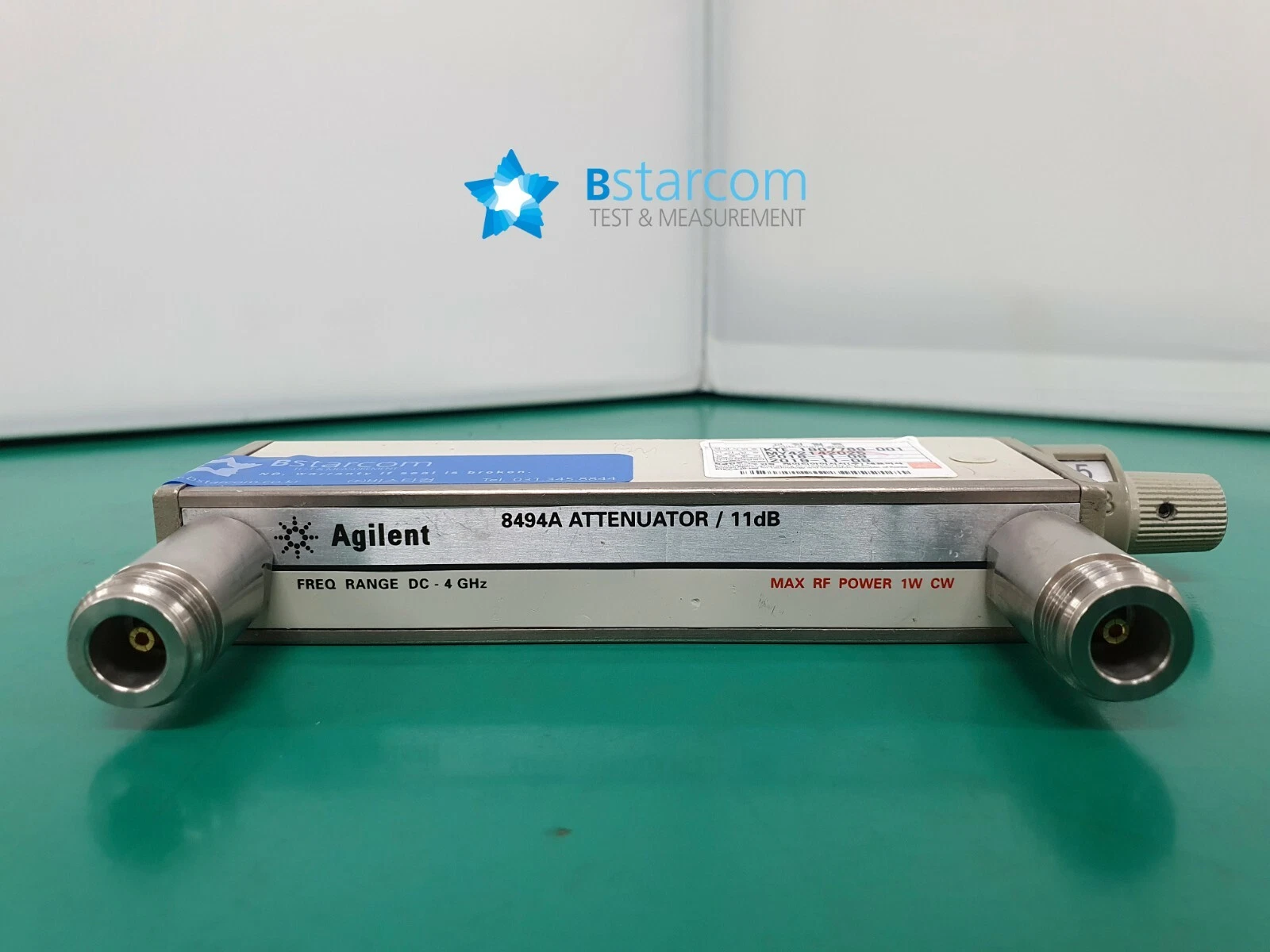

Agilent 8494A 4 GHz, 11 dB, 1 dB steps Attenuator-OPT:001

Condition: Used

Product specifications of Agilent 8494A (From Used-Line T&M Specifications)

  • Launch Date Jan-2049
  • See also 8494B
  • Status --

The Agilent 8494A, dc to 4 GHz manual step attenuator, offers exceptional repeatability and reliability. Attenuation is provided in 1 dB steps from 0 to 11 dB. Precision gold-plated leaf springs ensure long-life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option 890. Custom step attenuator/switch combinations are possible. The Agilent 11716A/B/C interconnect kits provide quick connection of Agilent 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.

  • Frequency Range: dc to 4 GHz
  • Insertion Loss at 0 dB: 0.6 dB + 0.09 dB/GHz
  • Maximum SWR: 1.5
  • Repeatability and Life Span
    • Repeatability life: 0.03 dB maximum
    • 5 million cycles per section
  • Maximum RF Input Power: 1 W (average), 100 W (peak)
  • Connector Type: choice of Type-N female, SMA female, APC-7
