Keysight Technologies (Agilent HP) keysight 86146B

178 Visitors viewed Shenzhen Mega Technologies Co.,ltd ads in the last 30 Days

Send Request
Keysight Technologies (Agilent HP) keysight 86146B
  • Ask for price

Send to a Friend
Flag of ChinaEquipment Location: China
View Description>
Hide Description

Description of Keysight Technologies (Agilent HP) keysight 86146B

Categories: Fiber Optics Comm, Optical Spectrum Analyzers

Manufacturer: Keysight Technologies (Agilent HP)

Model: 86146B

Condition: Used

Seller: Shenzhen Mega Technologies Co.,ltd

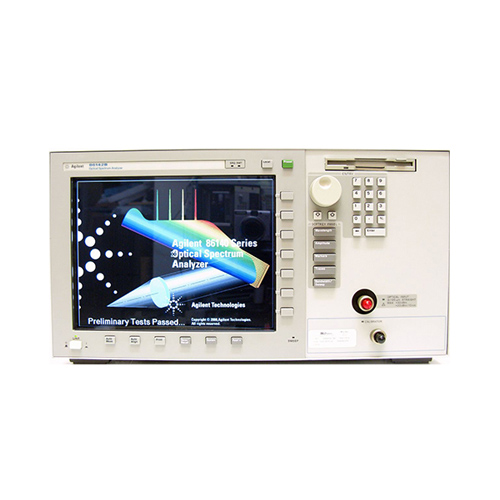

keysight 86146B Benchtop High Performance Optical Spectrum Analyzer

Key Performance Specifications

  • High amplitude accuracy (0.5 dB) and stability (10mdB), Low Polarization dependence (50mdB)
  • Wide Wavelength Range (600nm to 1700nm), Highest Wavelength Accuracy (10pm) and Repeatability
  • Widest Variability in Resolution Bandwidth (60pm to 10nm) with accurately calibrated filter shapes and excellent dynamic range

Additional features

  • Calibrated filter shapes and high accuracy = accurate system characterization.
  • Flexible settings let the OSA fit into many applications
  • Fast sweep speeds to maximize throughput

Wide Range of Applications

  • Single Wavelength Channel Drop
  • Fast sweep time due to its high and user selectable sensitivity (down to -90dBm)
  • Built-in applications for Passive Component Test, WDM Test, Optical Amplifier Test, Source Test
  • Optional built-in wavelength calibrator, white light source, current source, EELED source, multimode input and tunable filter output

The Keysight 86146B is a grating-based optical spectrum analyzer. The OSA uses a double-pass monochromator design to simultaneously achieve high sensitivity and dynamic range with a fast sweep time. This is key for characterizing DWDM components, broadband passive components, but also active optical components like narrowband sources (DFBs), wideband sources (FPs) and optical amplifier (EDFA, Raman amplifiers and SOAs).

Product specifications of Keysight Technologies (Agilent HP) keysight 86146B (From Used-Line T&M Specifications)

  • Launch Date Jan-2049
  • Form Factor Benchtop
  • Instrument Type Grating
  • Low end wavelength limit 600 nm
  • High End Wavelength Limit 1.7 µm
  • Wavelength Resolution 60 pm
  • Wavelength Accuracy 0.01 nm
  • Dynamic Range -60 dB At 0.8 nm (100 GHz at 1550 nm)dB
  • See also 86142B
  • Status --

The Agilent 86146B is a grating-based optical spectrum analyzer covering the 600 to 1700 nm wavelength range. The OSA uses a patented double-pass monochromator design to simultaneously achieve high sensitivity and dynamic range with a fast sweep time. This is key for characterizing DWDM components, broadband passive components, but also active optical components like narrowband sources (DFBs), wideband sources (FPs) and optical amplifier (EDFA, Raman amplifiers and SOAs).

The Agilent 86146B is a high performance benchtop optical spectrum analyzer with a filter mode that provides the flexibility to drop a single DWDM channel with fast-tuning speed, low-insertion loss, and highly repeatable wavelength accuracy.

Another application of the filter mode is to measure time-resolved chirp (TRC). Using the filter with a 81600C DCA, chirp measurements can be made on lasers.

  • High amplitude accuracy (0.5 dB) and stability (10mdB), Low Polarization dependence (50mdB)
  • Wide Wavelength Range (600nm to 1700nm), Highest Wavelength Accuracy (10pm) and Repeatability (2pm)
  • Widest Variability in Resolution Bandwidth (60pm to 10nm) with accurately calibrated filter shapes and excellent dynamic range
  • Single Wavelength Channel Drop
  • Fast sweep time due to its high and user selectable sensitivity (down to –90dBm)
  • Built-in applications for Passive Component Test, WDM Test, Optical Amplifier Test, Source Test
  • Optional built-in wavelength calibrator, white light source, current source, EELED source, multimode input and tunable filter output
  • Built-in TRC and DP application
