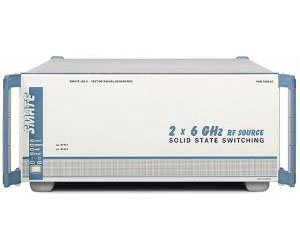

Rohde amp; Schwarz SMATE200A

1479 Visitors viewed Rosenkranz Elektronik ads in the last 30 Days

Send Request
  • €2150

Send to a Friend
Flag of GermanyEquipment Location: Germany
View Description>
Hide Description

Description of Rohde amp; Schwarz SMATE200A

Categories: Generators, Signal Generators

Model: SMATE200A

Condition: Used

Seller: Rosenkranz Elektronik

Rohde amp; Schwarz SMATE200A Opts: no option

Option: no option

Product specifications of Rohde amp; Schwarz SMATE200A (From Used-Line T&M Specifications)

  • Launch Date Jan-2049
  • Frequency Range Min. 100 kHz
  • Frequency Range Max. 6 GHz
  • Freq. Resolution 10 mHz
  • Output Power +26 dBm
  • Modulation AM,FM,Pulse,Phase,FSK,Vector,Wideband AM,ASK
  • Status --

The R&S SMATE200A is based on the successful R&S SMU200A but is specifically designed to meet production requirements. It comes without a display or keys on the front panel, and its connectors are located at the rear. In addition, it is optimized for faster setting times in order to reduce test time.

  • Very short setting times for frequency and level (<3 ms) In List mode, setting time reduced down to <400 µs through use of predefined frequency and level values
  • Flexibly addressable Fast Hop mode with setting times same as in List mode
  • Multisegment waveform function enables fast switching between different test signals in baseband
  • Electronic attenuator for entire frequency and level range
  • Status LEDs on front, connectors on rear
  • Very low SSB phase noise of typ. –135 dBc, or typ. –140 dBc with the Low Phase Noise option (20 kHz carrier offset, f = 1 GHz, 1 Hz measurement bandwidth)
  • Wideband noise of typ. –153 dBc (>5 MHz carrier offset, f = 1 GHz, 1 Hz measurement bandwidth)
  • High output power of typ. +26 dBm with High-Power Output option
  • Very high level repeatability of typ. 0.05 dB
  • I/Q modulator with 200 MHz system bandwidth
  • Excellent ACLR performance of typ. +70 dB with 3GPP FDD
  • Up to two complete independent signal generators in one unit
  • Choice of 3 GHz and 6 GHz frequency options in both paths
  • Up to two independent baseband sources that not only support realtime signal generation but also offer arbitrary waveform generation with up to 64 Msamples each
  • Digital Standard Eutra/LTE available
  • Remote-controllable via LAN (Gigabit Ethernet) and GPIB
