Narda SRM-3000 Selective Radiation Meter with 3501/03 3-Axis (27MHz - 3 GHz) Antenna and Accessories!

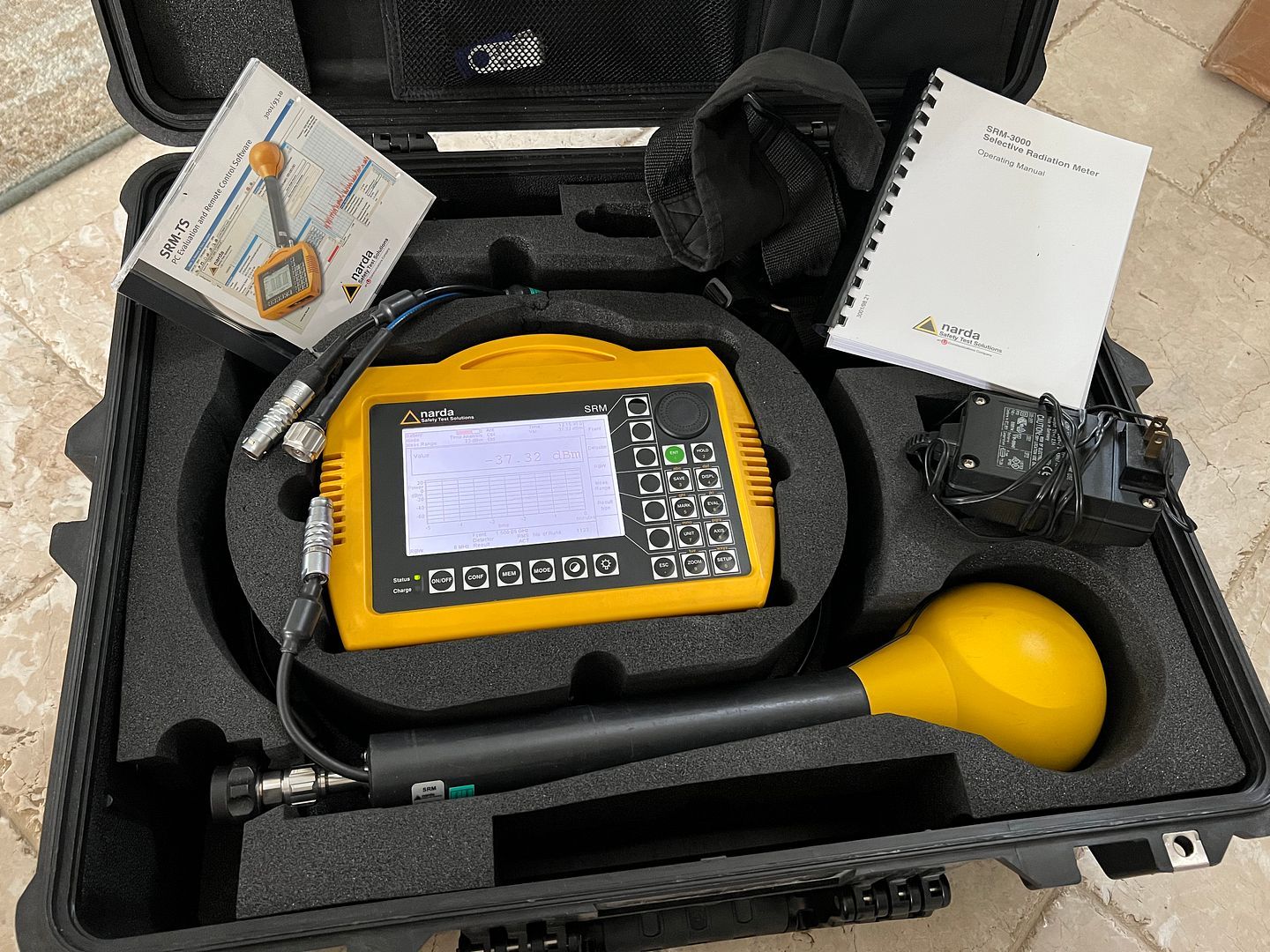

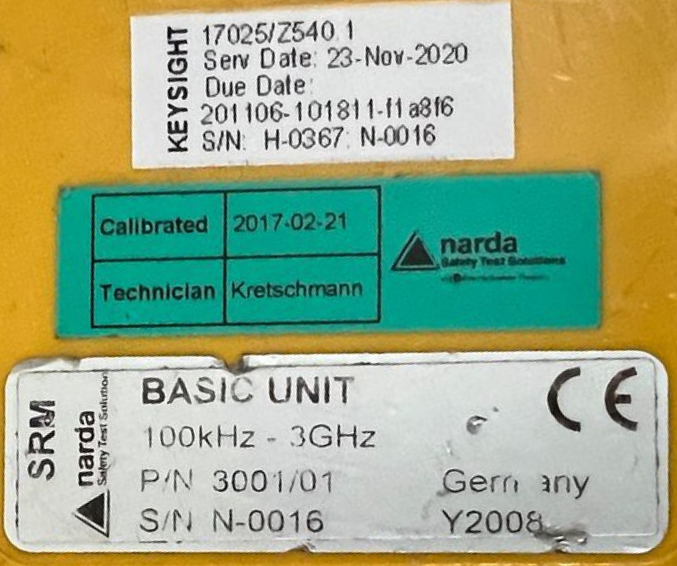

You are bidding on an Narda SRM-3000 Selective Radiation Meter with 3501/03 3-Axis (27MHz - 3 GHz) Antenna and accessories included. Calibrated by Keysight in Nov 2020. It is in perfect working condition and will arrive in a custom Pelican transit case.
The Selective Radiation Meter (SRM) is a hand-held selective measuring device
for safety analysis of RF and microwave electromagnetic fields. The SRM can be used
by broadcasters, radio network operators, measurement service providers and public
authorities to selectively measure the field exposure produced by individual telecom
services and assess the results in accordance with the applicable standards. Most measurements required in the mobile radio sector can be performed directly using the
hand-held device. The SRM immediately evaluates the results on site.

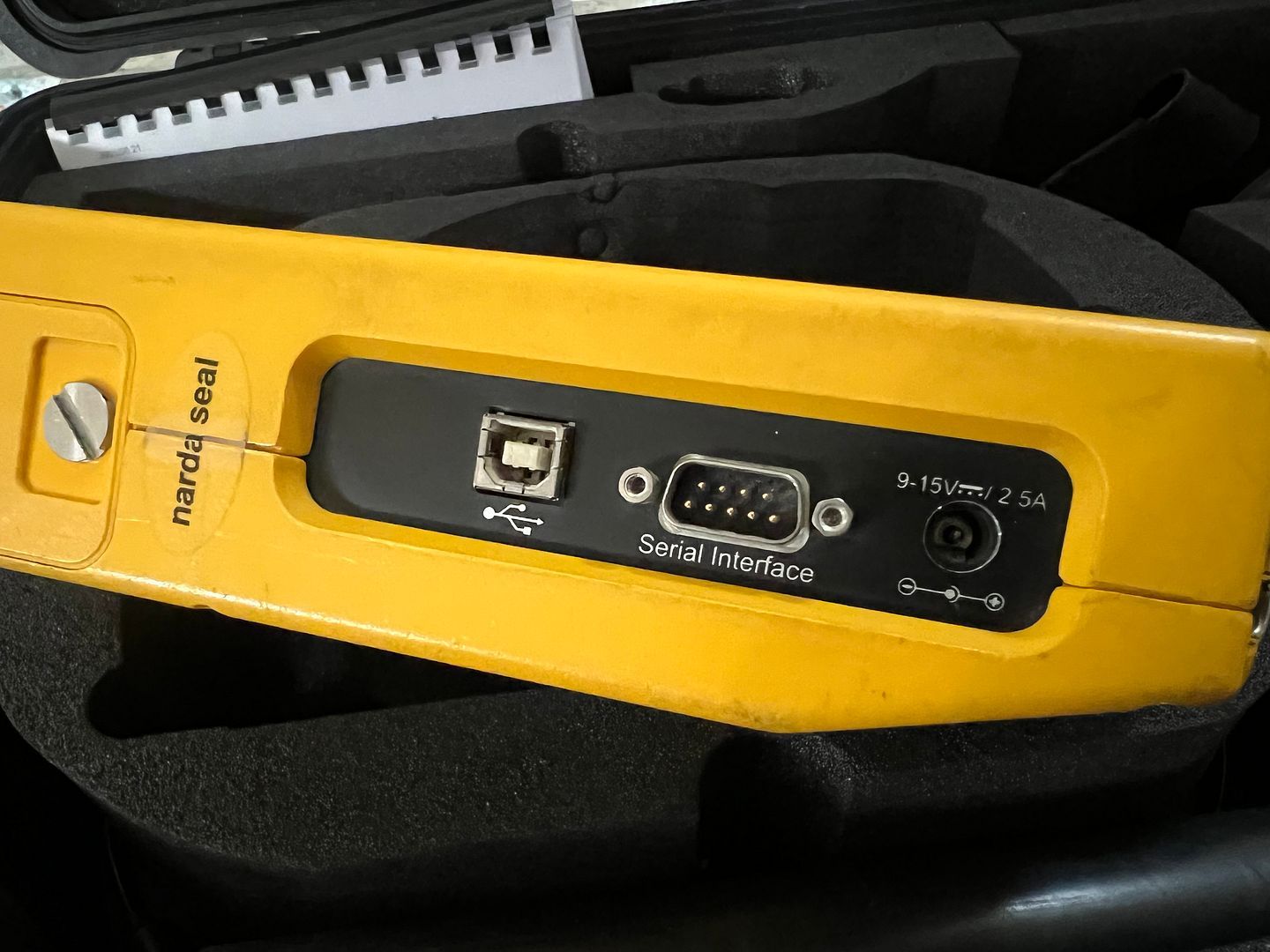

The SRM consists of a basic unit and a measurement antenna.
The basic unit contains a spectrum analyzer for the 100 kHz
to 3 GHz frequency range. It can be operated using anten nas from Narda or in combination with measurement antennas

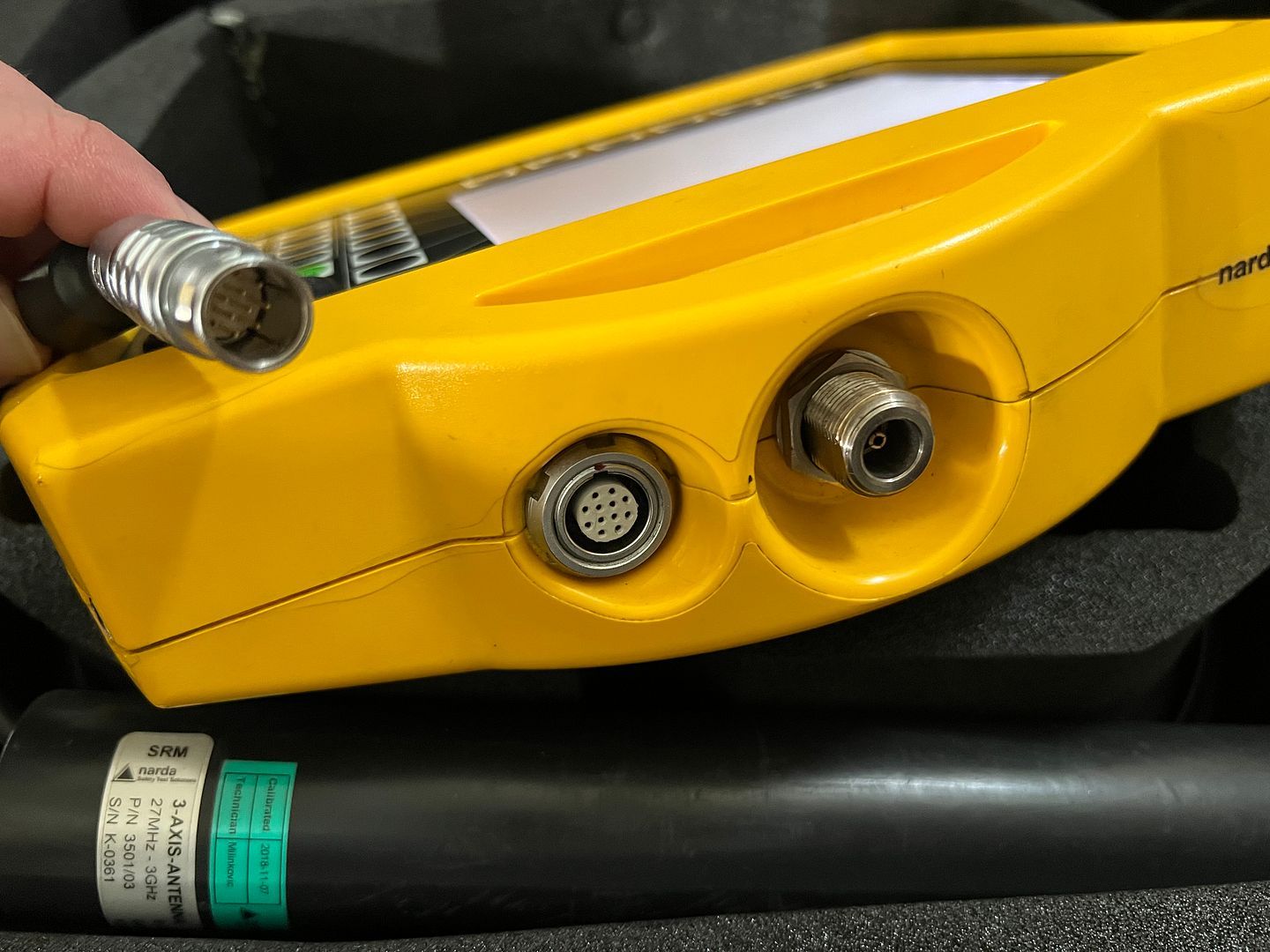

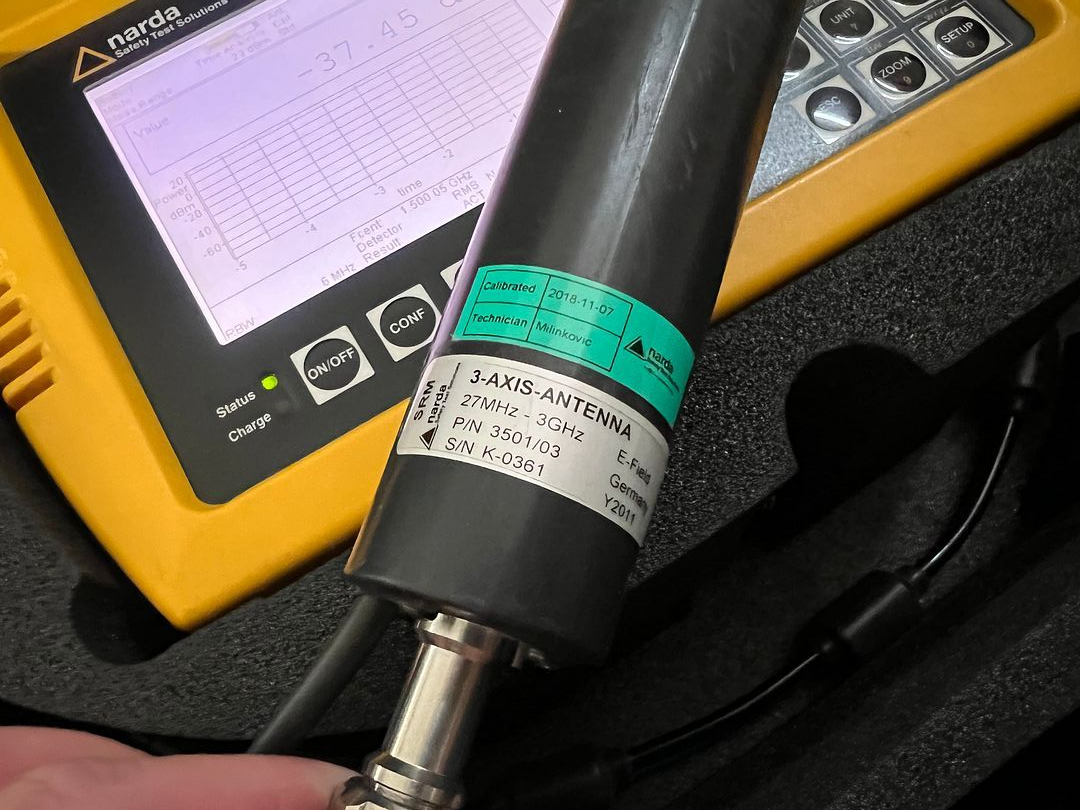

from other manufacturers. The triaxial antenna allows isotropic
(non-directional) measurements from 50 MHz to 3 GHz, cover ing FM radio up to the W-CDMA and UMTS services.
Specifications:
Basic Unit SRM-3000
Frequency Range 100 kHz to 3 GHz
Modes:

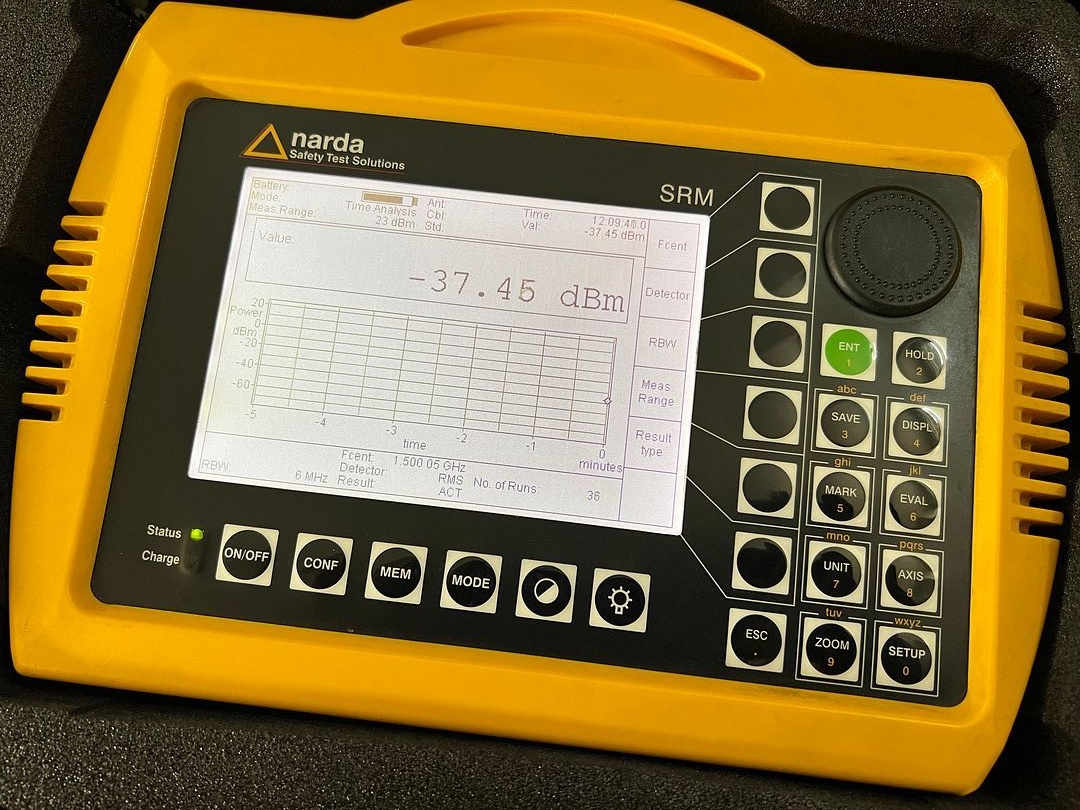

Spectrum Analysis / Time Analysis - Time Controlled Storing /
Safety Evaluation / UMTS P-CPICH Demodulation (option)
Phase Noise (SSB)
30 kHz carrier spacing < -85 dBc (1 Hz)
100 kHz carrier spacing < -105 dBc (1 Hz)
1 MHz carrier spacing < -120 dBc (1 Hz)
Reference Frequency
Initial Deviation < 1.5 ppm
Aging < 0.5 ppm/year
Thermal Drift < 2.0 ppm (within specified operating temperature range)
Amplitude:
Measurement Range Setting (MR) -27 dBm to +23 dBm (in steps of 1 dB)
Display Range From noise floor up to +26 dBm
Maximum RF Power Level +30 dBm
Maximum DC Voltage 50 V
Intrinsic Noise - 120 dBm for 1 kHz RBW, f>20 MHz and MR = -27 dBm
RF Attenuation 0 to 50 dB in steps of 1 dB (coupled with measurement range)
2nd Order Intermodulation Products ≤ - 57 dBc for two signals of level 9 dB below MR and
a spectral line spacing of more than 100 kHz
3rd Order Intermodulation Products ≤ - 68 dBc for two signals of level 9 dB below MR and
a spectral line spacing of more than 500 kHz

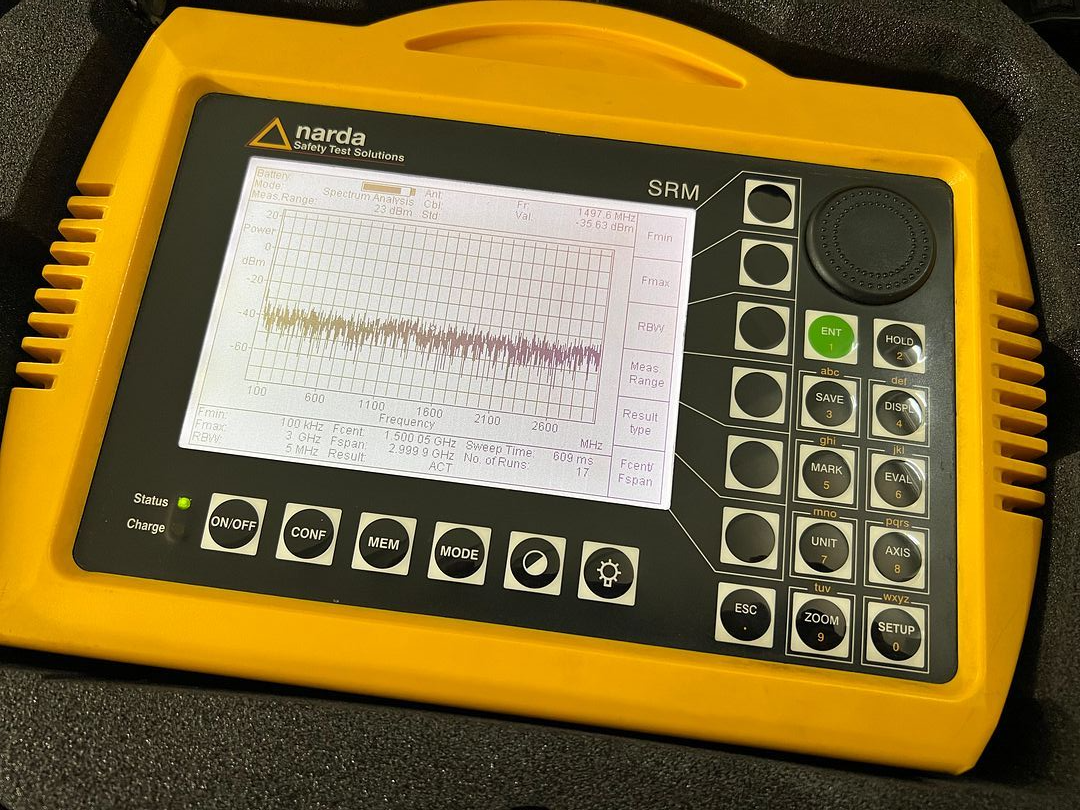

Spectrum Analysis Mode:
Measurement Principle Spectrum analysis
Resolution Bandwidths (-3 dB) 1 kHz to 5 MHz (in steps of 1, 2, 3, 5, 10)
List of available RBWs depends on selected sweep SPAN
Measurement Range Setting (MR Range) Set individually from a list or using the “MR Search” function for determining the optimum
measurement range at a given time
Sweep Time 50 ms to 1 s (depending on span), measured in uniaxial direction (axis)
Filter Type Gaussian
Shape Factor (-3 dB / -60 dB) - < 3.8 (for RBW ≤ 100 kHz)
