Anritsu ML2437A

1132 Visitors viewed Electro Rent (USA) ads in the last 30 Days

Send Request
  • $1495

Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of Anritsu ML2437A

Categories: Meters, Peak Power Meters

Manufacturer: Anritsu

Model: ML2437A

Condition: Used

Seller: Electro Rent (USA)

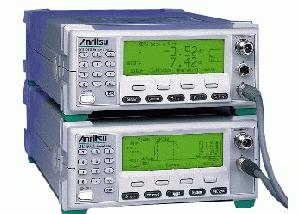

Anritsu ML2437A

Power Meter; Single Channel
In stock
Condition: Used

Product specifications of Anritsu ML2437A (From Used-Line T&M Specifications)

  • Launch Date Jan-2049
  • Sensors MA242xD, MA244xD, MS247xD, and MA248xD Series
  • Channels 1
  • Freq. Range Low 100 kHz
  • Freq. Range High 65 GHz
  • Sensor Type Diode
  • Computer Interface GPIB
  • Status --

The ML2437A and ML2438A Power Meters combine the advantages of thermal meter accuracy, diode meter speed, and peak power meter display graphics. The result is a single instrument that samples at more than 35K per second and achieves 90 dB dynamic range with a single sensor. These meters include graphics display capability as a standard feature. The ruggedized housing and optional high-capacity NiMH battery bring laboratory quality accuracy to field service applications. ML2437A has one input, and ML2438A has two inputs.

  • Frequency Range: 100 kHz to 65 GHz (Sensor dependant)
  • Meter specifications apply to MA2400A/B Series Power Sensors. Compatible with MA and MP Series sensors
  • MA2420A/B Series Thermal Sensors:50 dB
  • MA2440A Series High Accuracy Power Sensors:87 dB CW, > 57 dB
  • Peak MA2460A/B Series Fast Diode Sensors:80 dB
  • MA2470A Series Power Sensors:90 dB CW, > 60 dB Peak
  • MA2480A Series Universal Sensors:80 dB
  • Power Measurement Range: -70 to +47 dBm (0.1nW to 50W), sensor/attenuator dependent. Use couplers for higher power levels
  • RBW - 100 KHz
