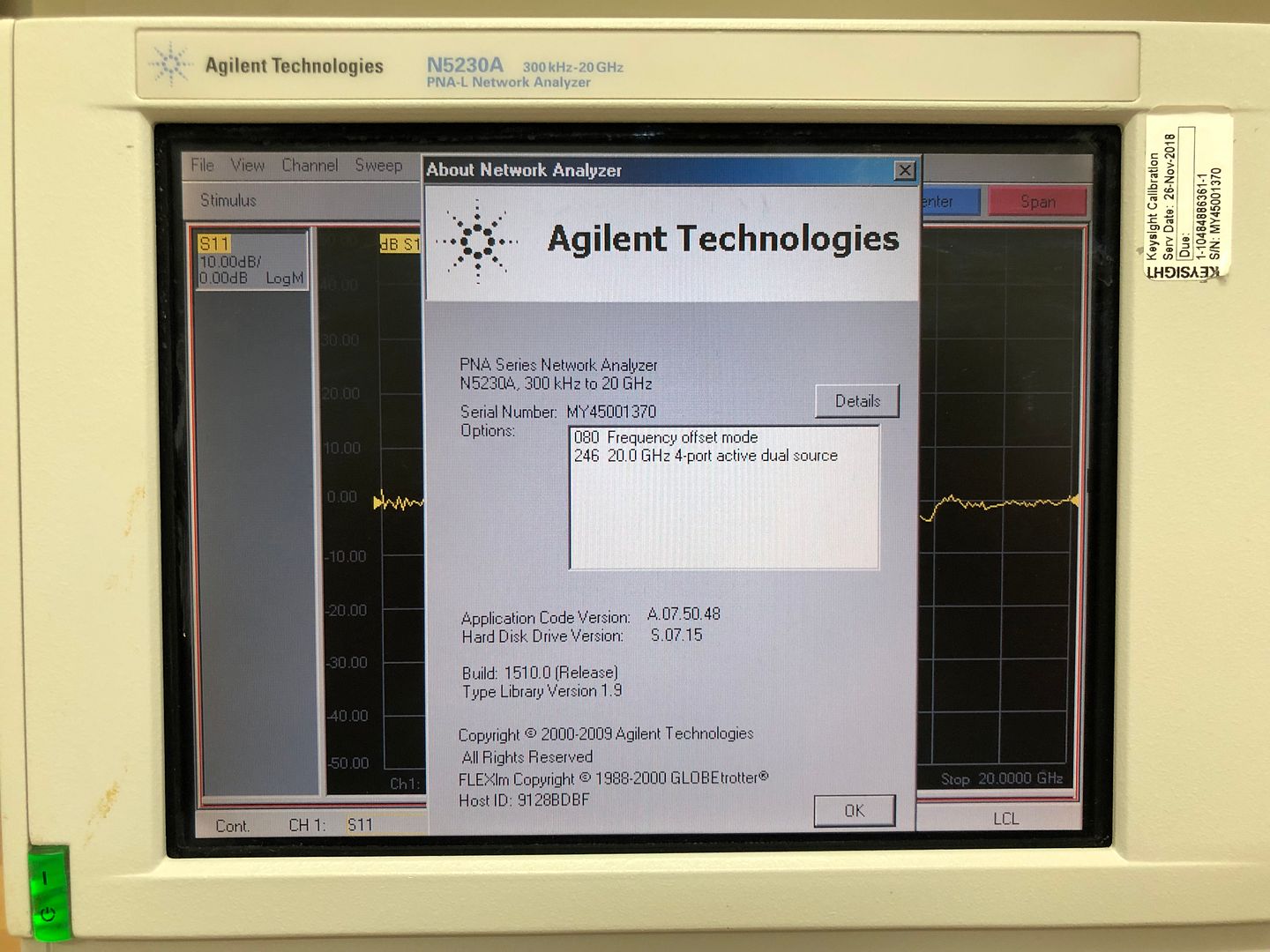

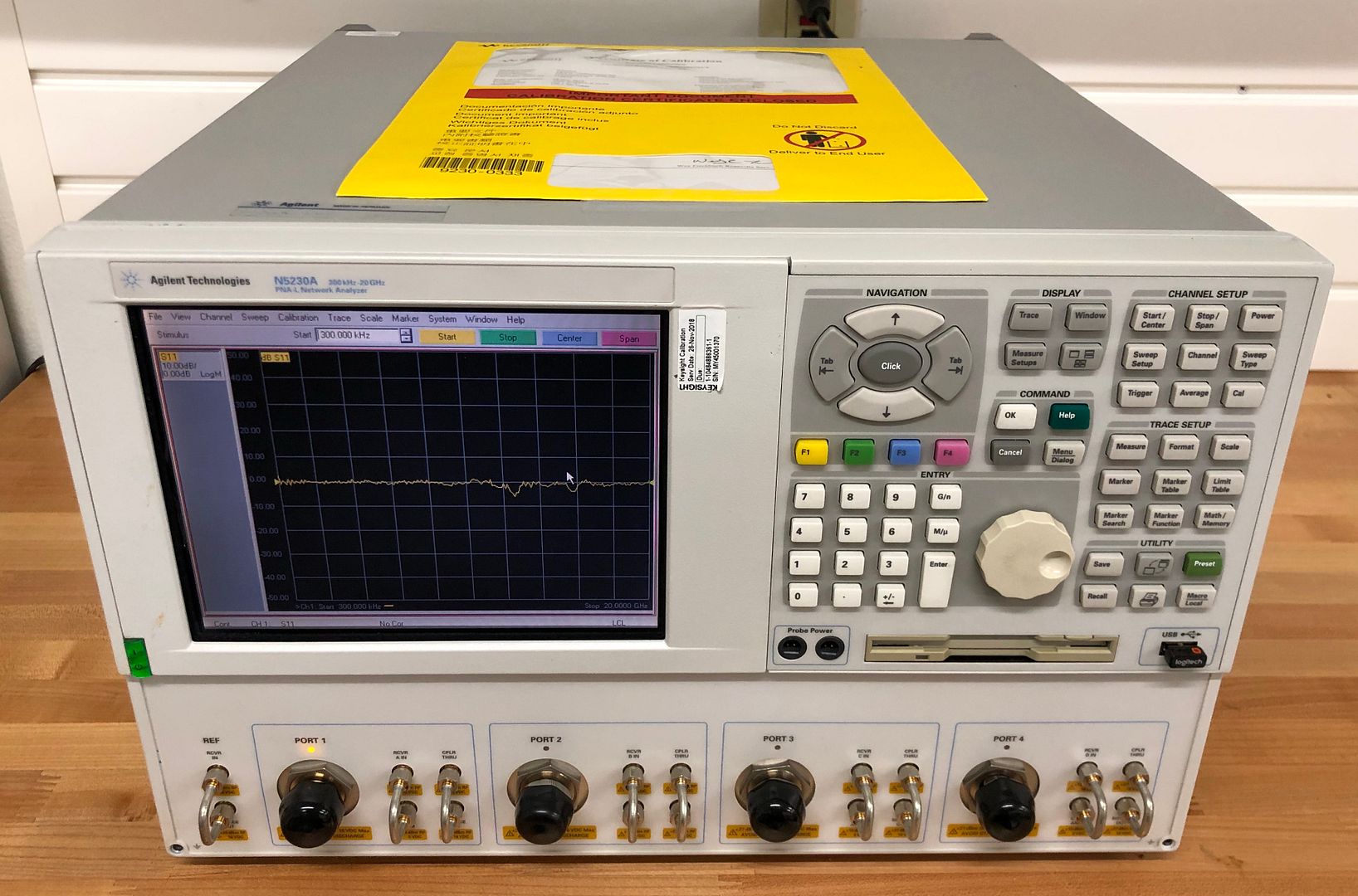

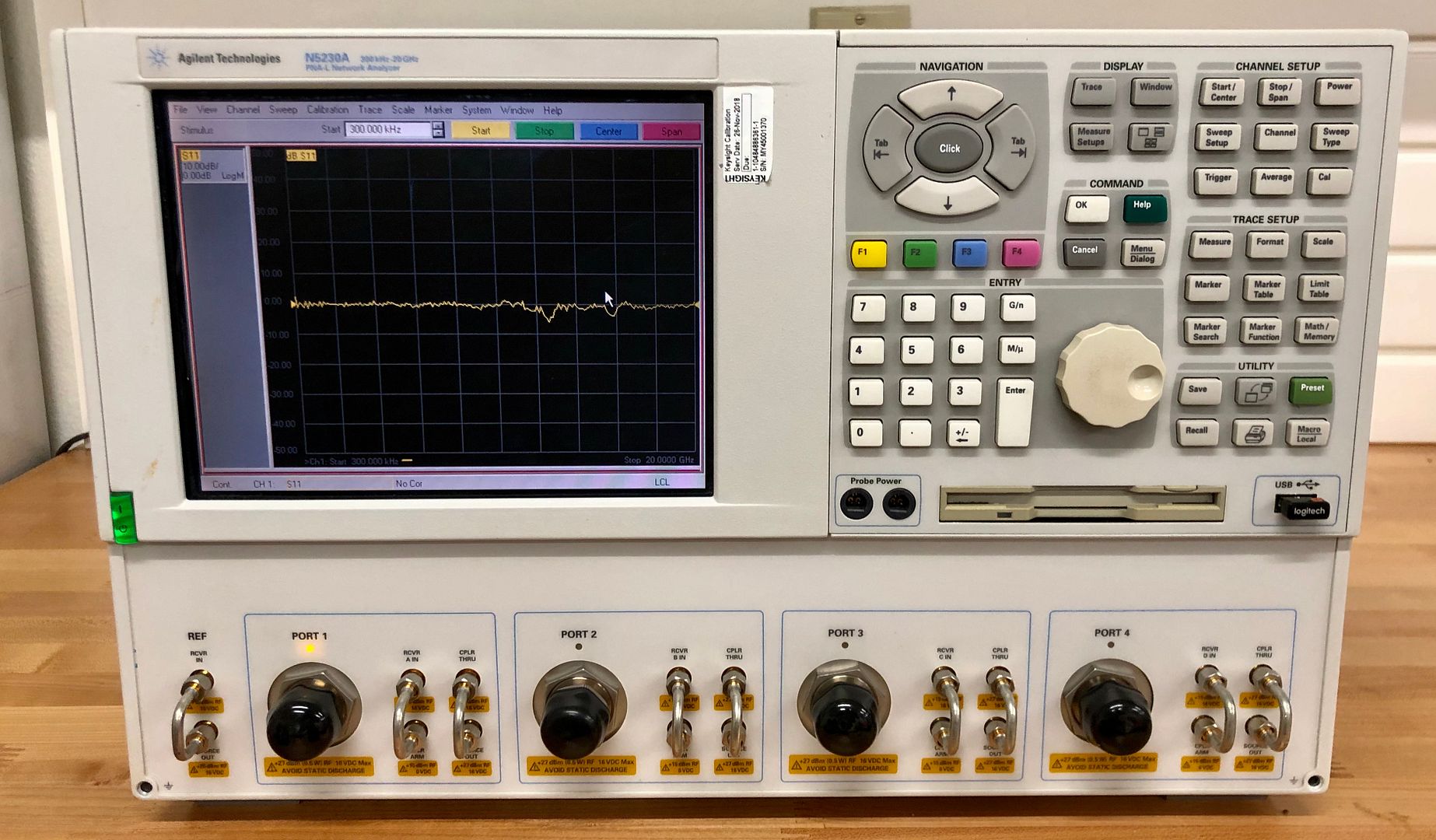

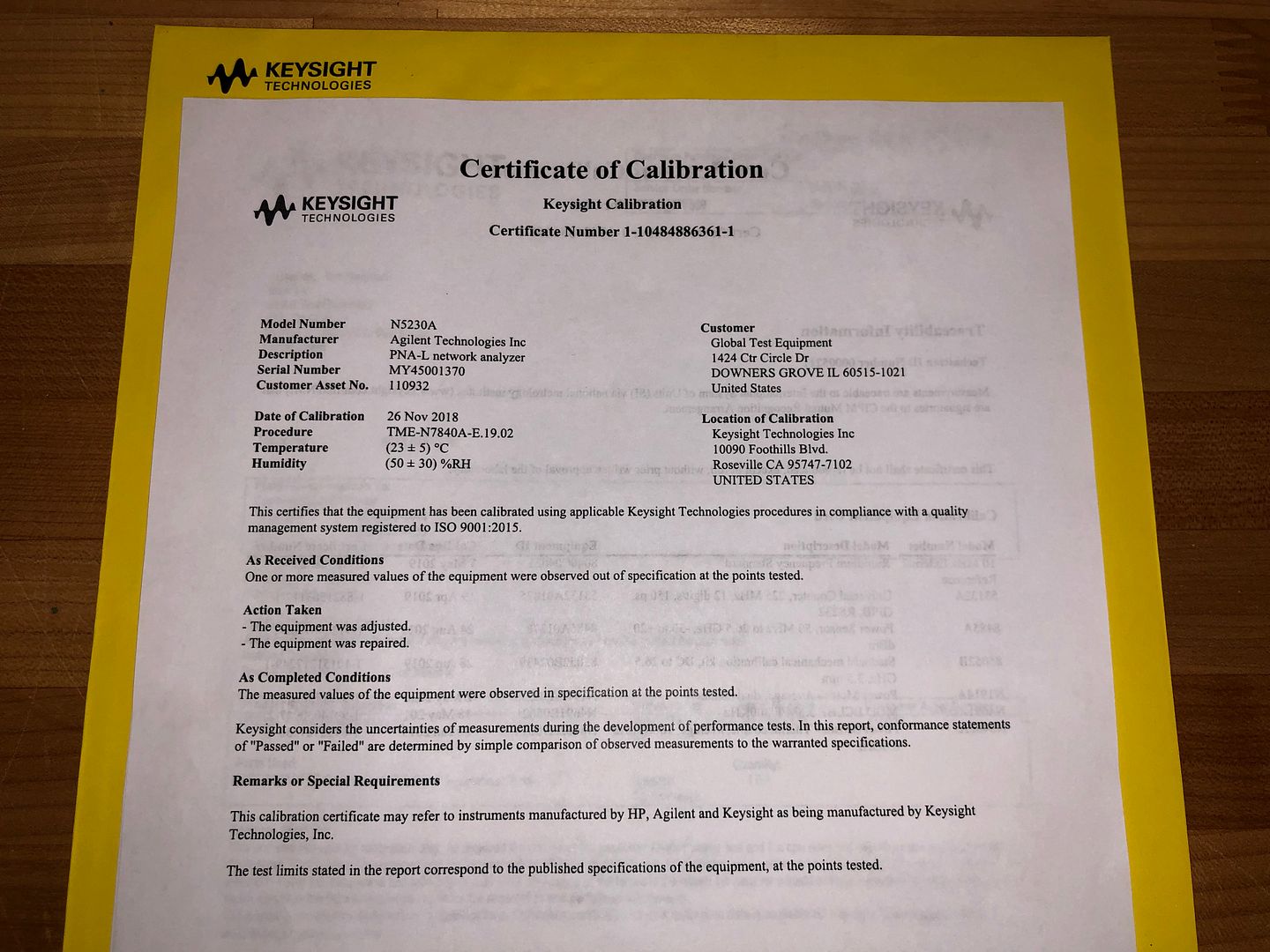

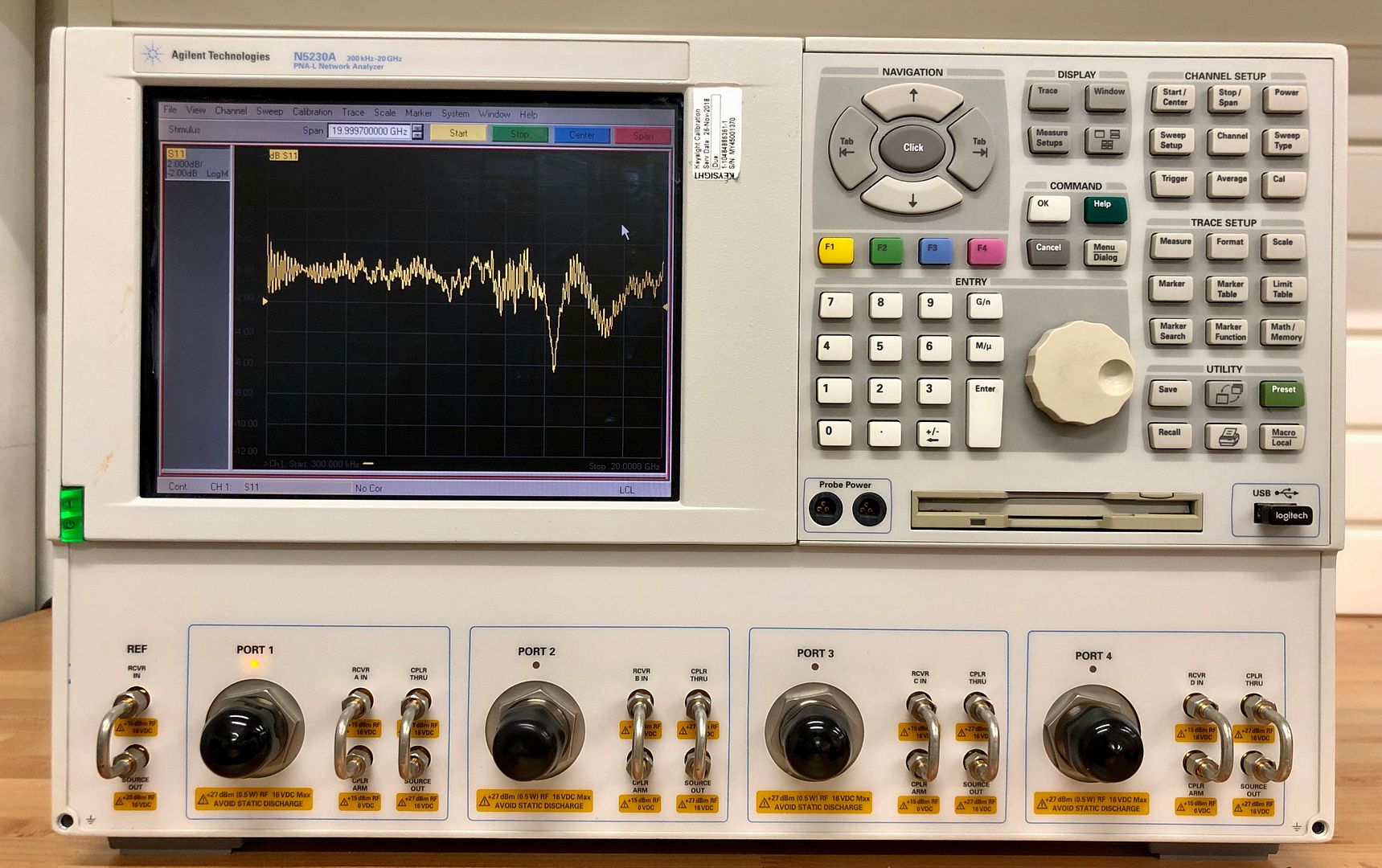

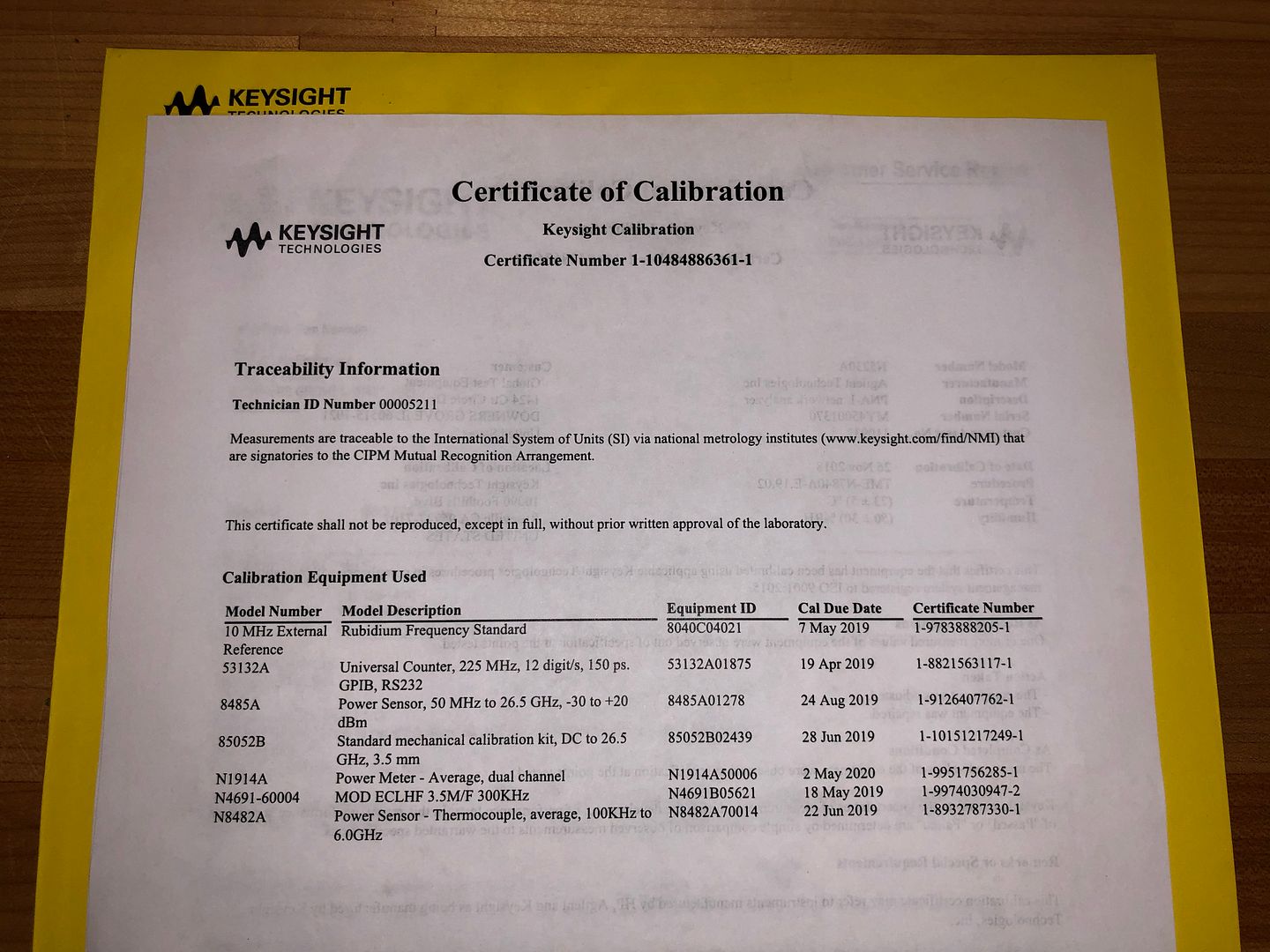

You are bidding on an Agilent N5230A 300 kHz to 20 GHz, 4 Port Vector Network Analyzer with Options 080 (Frequency Offset Mode) and 246 (300 kHz to 20 GHz 4-Port Configurable Test Set, Extended Power Range and Internal Second Source). This unit will arrive with a fresh calibration performed by Keysight Technologies, with full test data included!
The Keysight / Agilent 4-port PNA-L vector network analyzer is a member of the PNA series network analyzer platform and provides the best combination of speed and accuracy for measuring multiport and balanced components such as filters, duplexers and RF modules up to 20 GHz. The 4-port PNA-L automatic port extension feature automatically measures and corrects for fixtures, making measurements of in-fixture devices simple and accurate. This new feature also corrects for a fixture insertion loss to further improve accuracy. In addition, the Agilent optional Electronic Calibration (ECal) modules enable engineers to perform fast, repeatable and highly accurate calibrations. With ECal, full two-, three-, and four-port calibration can be performed up to 30 times faster than mechanical calibration.
Option 246 is a 4-port, S-parameter, auto-reversing, configurable test set with extended power range and a second internal source for the N5230A/C PNA-L network analyzer. The configurable test set provides access to the signal path between the internal source and the analyzer's test ports. This option provides the capability to improve instrument sensitivity for measuring low-level signals, to reverse the directional coupler to achieve even more dynamic range or to add components or other peripheral instruments for a variety of applications such as high-power measurements. The extended power range adds a 60 dB step attenuator internally to the RF source path. This attenuator extends the source output power range to over 80 dB, allowing for maximum flexibility when stimulating the device under test. The second internal source is independently tunable and can be used to provide a second stimulus for intermodulation testing of amplifiers and for use as a local oscillator (LO) signal for testing conversion loss of mixers and frequency converters.
THIS INSTRUMENT WITH THIS OPTION CONFIGURATION HAS A LIST PRICE OVER 100K!
Features:
- Integrated Full 4-port S-Parameter and balanced measurements up to 20 GHz (option 246)
- 103 dB dynamic range and < 0.004 dB trace noise
- 4.5 usec/point measurement speed, 32 channels, 16,001 points
- Automatic port extension automatically corrects for in-fixture measurements
- Optional second internal source for fast measurements of amplifier intermodulation distortion and mixer/converter conversion loss
- Flexible test set architecture allows user to reconfigure test set and add external components for specific applications such as high power measurements, highest dynamic range measurements, and more
- Internal RF source step attenuator allows for output power range greater than 80 dB
- Option 080 for Frequency Offset Measurements

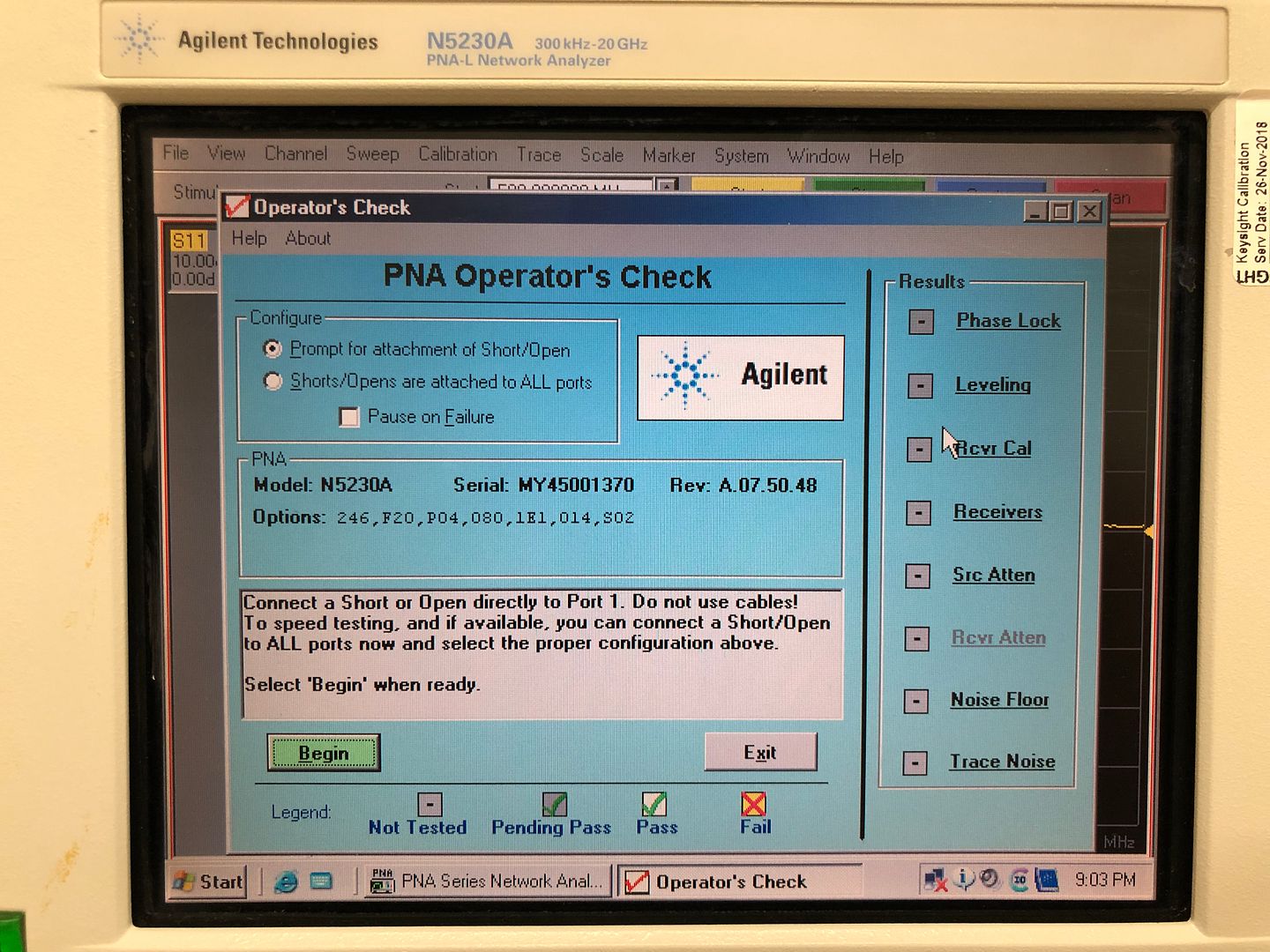

This unit is in excellent condition, has been fully tested and is guaranteed functional. It comes with a fresh calibration and a 14 day right of return should it not perform to your expectations. Please review pics and text carefully before bidding to verify accuracy of description. If you don't see it in the pictures, it is not included.

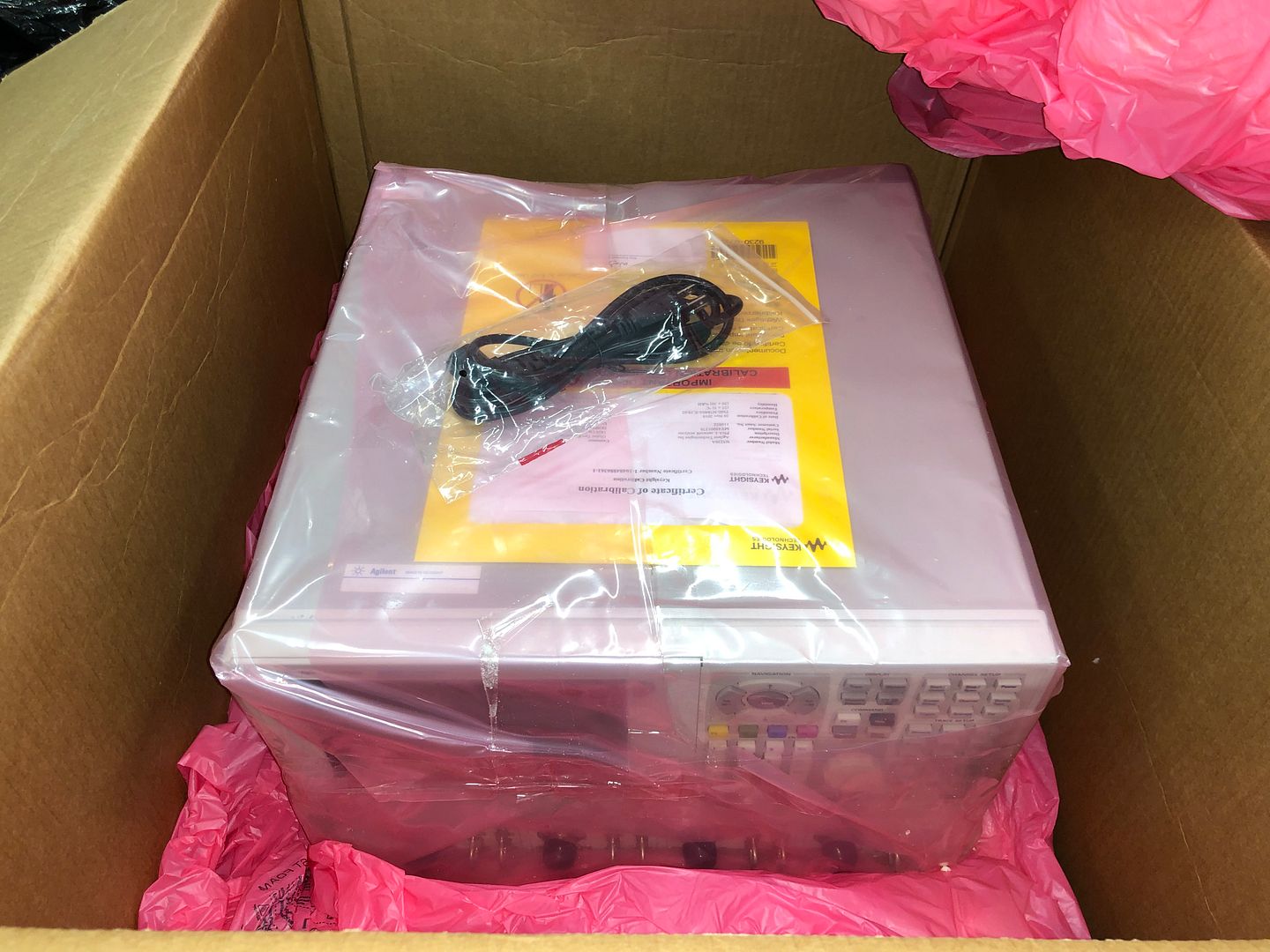

Insurance is included in UPS shipping charges. Item shipped internationally on buyer's UPS, FEDEX or DHL accounts only.
We will accept payment for this item by company check, cashier’s check and wire transfer only.
If you have zero feedback, contact us prior to purchase so we know you are a serious bidder. Otherwise, we may cancel your bid before the auction closes. It should be obvious that you should only bid if you are serious and do intend to complete the transaction. Any stated warranty will be voided if the unit is opened or if any calibration or lockout stickers have been tampered with or removed.
Please note that shipping and insurance costs are non-refundable.
Our feedback is very important to us and we strive for 100% positive on every transaction. If you are unsatisfied with any aspect of your transaction, please contact us before leaving negative or neutral feedback so that we can address and remedy the issue immediately. Additionally, we are always happy to leave positive feedback for our trading partners after a successful transaction.
Make sure that you check out our other auctions for more great deals on test and measurement equipment.
Thank you and good luck bidding.
