Vector Network Analyzer 9kHz-13.6GHz, 2 Port, R&S ID 1303.6509K13, with options: B4 = OCXO Reference Frequency; B5 = Adds Interfaces: Video Out, IF Out, Noise Source Control, Aux Port, Connector for NRP Power Sensors; B6= TV Trigger; B7 = Narrow Resolution Filters;B8=Gated Sweep B10 = GPIB Interface; B22 = RF Preamplifier (3GHz/6GHz) Unit sold with a valid calibration certificate and with 12 months warranty

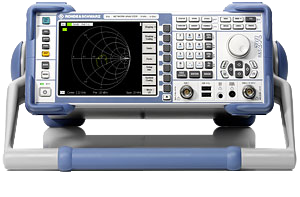

The R&S ZVL13 is a Vector Network Analyzer with a bandwidth from 9 kHz to
13.6 GHz and combines the functions of a network analyzer, spectrum analyzer, (option K1) and power meter in a single box. It is ideal for lab applications where the measurement tasks vary frequently.
It can be used to measure S-parameters as well as the output spectrum, ACP, and TOI without having to reconnect the device under test (DUT).
With the ZVL, production lines can now be run even more flexibly, as the switchover from network analyzer to spectrum analyzer can easily be effected via remote control. Moreover, an NRP-Z power sensor, which can be directly connected to the Rohde & Schwarz ZVL, ensures precise power measurements.
Frequency range: 9 kHz to 13.6 GHz
Frequency overrange (unspecified): 5 kHz to 15 GHz
Dynamic range: >115 dB, typ. 123 dB
Bidirectional test set: display of all four S-parameters
Multitrace display
Optional spectrum Analysis (option K1) and digital communications standards
Distance-to-fault measurement for detecting cable faults
Time domain Analysis
Accurate power measurement (USB connector for NRP-Z power sensor series)
Improved trace noise characteristics
LXI Class C compliance
12 V DC operation and internal battery
Connection for external monitor
Testport: N (f), 50 ohms
Shock-resistant housing and ergonomic carrying handle
Compact size and low weight (<7 kg)
€ 25,990 (net) $31,188 (US)
