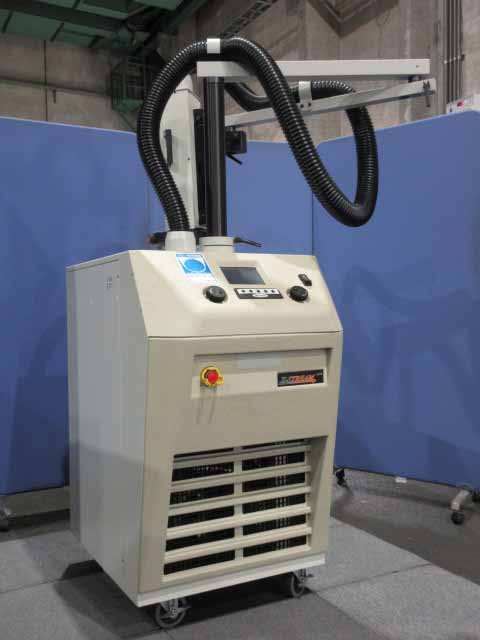

Temptronic TPO4310A-3C44-5

103 Visitors viewed TANAKA Corporation ads in the last 30 Days

Model year : 2007

Temperature Range：-75° to +225°C

Air supply temperature：+20º to +25ºC, Dew point below 10°C Air or N2

Supply Pressure：6.2 to 7.6 BAR (90 to 110 PSIG)

Supply flow at minimum supply pressure：7.2 l/s to 14.3 l/s (15 to 30 scfm)(Nominal 25 scfm)

Base: Width: 61.0 cm (24 in.) Depth: 71.1 cm (28 in.); Height: 108 cm (42.5 in.)

Weights：System weight: 236 kg (520 lbs)

Remote interface ports：GPIB,RS232C

Power supply：AC220±10% 50Hz MAX 30A

Accessory：Enclosures,Power cable (about 5m) and manual is included

Miscellaneous：Emergency stop button included

NOTE： power plug,air hose not attached
