Rigol RSA3015E

1817 Visitors viewed Valuetronics International Inc ads in the last 30 Days

Condition: New

Features

• Ultra-Real technology
• Frequency: up to 1.5 GHz
• Displayed average noise level (DANL): <-161 dBm (typical)
• Phase noise: <-102 dBc/Hz (typical)
• Level measurement uncertainty: <1.0 dB
• 3 GHz tracking generator
• Min. RBW 1 Hz
• Up to 10 MHz real-time analysis bandwidth
• Multiple measurement modes
• Various advanced measurement functions
• EMI measurement application (option)
• Multiple trigger modes and trigger masks
• Density, spectrogram, and other display modes
• PC software options
• 10.1'' capacitive multi-touch screen; supporting touch gestures
• USB, LAN, HDMI and other communication and display interfaces

Specifications

Frequency Range

• Model RSA3015E/RSA3015E-TG: 9 kHz to 1.5 GHz

Internal Reference Frequency

• Reference Frequency: 10 MHz
• Accuracy: ±[(time since last calibration × aging rate) + temperature stability + calibration accuracy]
• Initial Calibration Accuracy: Standard <1 ppm, Option OCXO-C08 <0.1 ppm
• Temperature Stability: 0 to 50 degrees Celisus , with the reference 25?, Standard <0.5 ppm, Option OCXO-C08 <0.005 ppm
• Aging Rate: Standard <1 ppm/year, Option OCXO-C08 <0.03 ppm/year

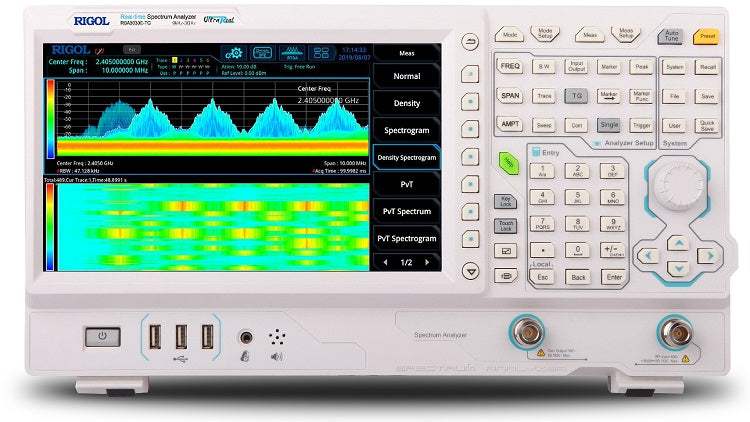

The RSA3015E-TG is a 1.5 GHz spectrum analyzer from Rigol. Based on the Ultra-Real technology, the high-speed real-time measurement mode allows you to acquire the signals in the analysis bandwidth seamlessly and make data analysis. It also provides various display modes, such as Spectrogram, Density, and PVT. Besides, FMT function is also available
