Rohde amp; Schwarz RS-FSQ40

2909 Visitors viewed Calright Instruments ads in the last 30 Days

Send Request
  • Ask for price

Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of Rohde amp; Schwarz RS-FSQ40

Categories: Analyzers Spectrum, Misc. Spectrum Analyzers

Manufacturer: Rohde & Schwarz

Model: FSQ40

Condition: Used

Seller: Calright Instruments

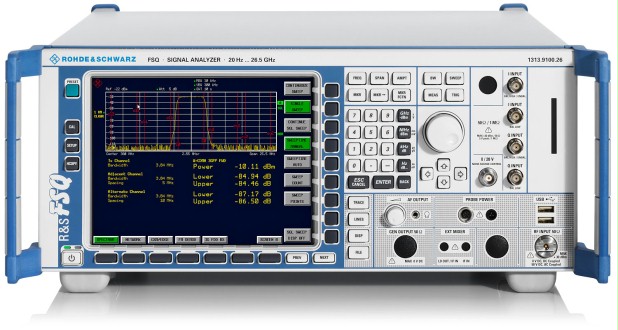

Rohde amp; Schwarz RS-FSQ40 FSQ40 Signal Analyzer The Ramp;S®FSQ is the solution...

FSQ40 Signal Analyzer The Ramp;S®FSQ is the solution for all development and production measurement tasks. It offers very low phase noise, unsurpassed low residual EVM, a wide dynamic range and above-average accuracy, making it the ideal high-end measuring instrument for development applications, where tolerances and limit values must often be lower than defined in a standard.
Condition: Pre-Owned
Call for Availability

Product specifications of Rohde amp; Schwarz RS-FSQ40 (From Used-Line T&M Specifications)

  • Launch Date Jan-2049
  • Low end frequency limit 20Hz
  • High End Frequency Limit 40 GHz
  • Resolution Bandwidth Min. 1Hz
  • Resolution Bandwidth Max. 10 MHz
  • Amplitude Range DANL to +30 dBm
  • See also FSQ3
  • Status --

The Signal Analyzer R&S FSQ combines two instruments in one. It offers signal analysis at a demodulation bandwidth of up to 120 MHz with the dynamic range of a high-end spectrum analyzer.

  • Frequency range: 20 Hz to 40 GHz
  • Dynamic range of a high- end spectrum analysator
    • TOI + 25 dBm, typ.
    • 1 dB compression +13 dBm, typ.
    • 84 dB ACLR/3GPP with noise correction
  • 28 MHz demodulation bandwidth (optional 120 MHz)
  • 16 Msample I and Q memory
    • Application firmware for digital demodulation measurement
    • Bluetooth
    • GSM/EDGE
    • 3 GPP WCDMA, HSDPA, TD-SCDMA
    • CDMA2000, 1xEV-DV, 1xEV-DO
    • WLAN 802.11a/b/g/j
    • General purpose vector signal analysis
  • Other data:
    • Phase-noise typ. -123 dBc/Hz @ 10 kHz offset, CF 640 MHz
    • Phase-noise typ - 160 dBc/Hz @ 10 MHz offset, CF 640 MHz
    • TOI typ. ±25 dBm
    • 1-dB-compression point + 13 dBm
    • 3GPP ACLR 77 dB, 84 dB with noise correction
    • ACLR for 4-carrier scenario: 77 dB with noise correction
    • 0.3 dB total level uncertainty up to 3.6 GHz
    • <0.1 dB linearity error down to -70 dB
    • 2.5ms sweep time in frequency domain
    • 1 μs sweep time in time domain
    • up to 70 remote measurements/s via GPIB
    • up to 80 manual measurements/s (screen update)
