Agilent N9912A

1817 Visitors viewed Valuetronics International Inc ads in the last 30 Days

Send Request
Agilent N9912A

 Add to request cart
Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of Agilent N9912A

Categories: Analyzers Spectrum, Portable Spectrum Analyzers

Manufacturer: Keysight Technologies (Agilent HP)

Model: N9912A

Condition: Used

Seller: Valuetronics International Inc

N9912A Agilent Cable and Antenna Analyzer Used

Condition: Used

Additional Features:

 Measurements:

  • Cable and antenna analyzer for return loss, one-port cable loss, distance to fault, line sweeping, and VSWR measurements
  • Handheld network analyzer (S11, S21, phase, and Smith Chart)
  • Handheld spectrum analyzer, optional preamplifier
  • Cable trimming

Calibration:

  • Integrated QuickCal allows you to calibrate FieldFox without a calibration kit, providing worry-free accuracy and repeatability
  • Immediate calibration with FieldFox’s CalReady makes the unit calibration ready at the test port immediately following power-up
  • Broadband calibration with automatic interpolation to eliminate re-calibration of FieldFox when the test frequency or the number of points changes
  • Mechanical open, short, load calibration support

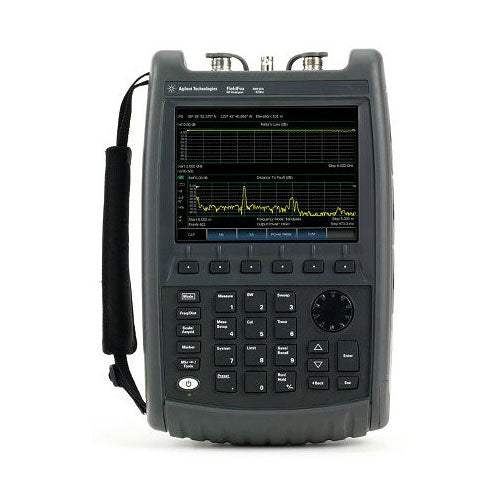

The Agilent N9912A FieldFox RF Analyzer is the world’s most integrated handheld instrument for wireless network installation and maintenance. It combines cable/antenna analysis, spectrum analysis, power meter measurements, vector network analysis, and a vector voltmeter into one rugged, compact, lightweight and weather-resistant package. Standard accessories include AC/DC adapter, battery, soft carrying case, user manual and FieldFox Data Link software. Additional accessories are available under Agilent N9910X RF and MW handheld accessories.


["10

VNA time domain

30

Remote control capability

104

4 GHz RF vector network analyzer

transmission/reflection

110

Transmission measurement

111

QuickCal

210

VNA transmission/reflection

211

VNA full 2-port S-parameters

215

TDR CABLE MEASUREMENTS

230

Spectrum analyzer

231

6 GHz spectrum analyzer (requires Option 106)

233

Spectrum analyzer

235

Preampliier for spectrum analyzer (requires Option 230 or 231)

236

Interference analyzer and spectrogram

238

Spectrum analyzer time gating

302

External USB power sensor support

303

Network analysis capability

305

Cable and antenna analyzer

307

GPS receiver

308

Vector voltmeter

309

DC bias variable-voltage source

310

Built-in power meter

350

REAL-TIME SPECTRUM ANALYZER (RTSA)"]

Product specifications of Agilent N9912A (From Used-Line T&M Specifications)

The FieldFox RF Analyzer is the world’s most integrated handheld instrument for wireless network installation and maintenance. It combines cable/antenna analysis, spectrum analysis, power meter measurements and vector network analysis into one rugged, compact, lightweight and weather-resistant package. Standard accessories include AC/DC adapter, battery, soft carrying case, user manual and FieldFox Data Link software.

  • Cable and antenna analyzer for return loss, one-port cable loss, distance to fault, line sweeping, and VSWR measurements
  • Handheld network analyzer (S11, S21, phase, and Smith Chart)
  • Handheld spectrum analyzer, optional preamplifier
  • Interference Analyzer: Spectrogram, waterfall display, record and play back
  • Cable trimming
  • Calibration:
    • Integrated QuickCal allows you to calibrate FieldFox without a calibration kit, providing worry-free accuracy and repeatability
    • Immediate calibration with FieldFox’s CalReady makes the unit calibration ready at the test port immediately following power-up
    • Broadband calibration with automatic interpolation to eliminate re-calibration of FieldFox when the test frequency or the number of points changes
    • Mechanical open, short, load calibration support
