Rohde & Schwarz FSH.18

1817 Visitors viewed Valuetronics International Inc ads in the last 30 Days

Send Request
  • $13985

Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of Rohde & Schwarz FSH.18

Categories: Analyzers Spectrum, Portable Spectrum Analyzers

Manufacturer: Rohde & Schwarz

Model: FSH18

Condition: Used

Seller: Valuetronics International Inc

FSH.18 Rohde & Schwarz NEW

Condition: New

Features:

  • Handheld spectrum analyzer
  • Frequency range: 9kHz to 8GHz
  • Includes pre-amplifier and tracking generator
  • Does not include built-in VSWR bridge or DC voltage supply (bias) for port 1 / 2
  • Measurement functions for all important measurement tasks related to the startup and maintenance of transmitter systems
  • Rugged, splash-proof housing for rough work in the field
  • Easy handling due to low weight (3 kg with battery) and easy-to-reach function keys
  • Easy operation thanks to user configurable, automatic test sequences (wizard)

The R&S FSH is a handheld spectrum analyzer and - depending on the model and the options installed - a power meter, a cable and antenna tester and a two-port vector network analyzer. It provides the most important RF analysis functions that an RF service technician or an installation and maintenance team needs to solve daily routine measurement tasks. For example, it can be used for maintaining or installing transmitter systems, checking cables and antennas, assessing signal quality in broadcasting, radio communications and service, measuring electric field strength or in simple lab applications. The R&S FSH can perform any of these tasks quickly, reliably and with high measurement accuracy.

Weighing only 3 kg, the R&S FSH is a handy instrument. All frequently used functions have their own function keys and are within fingertip reach. The brilliant color display is easy to read even under poor lighting conditions, and it has a monochrome mode for extreme conditions.

The capacity of the R&S FSH battery enables uninterrupted operation for up to 4.5 hours. The battery is changed within seconds and all connectors are splash-proof.

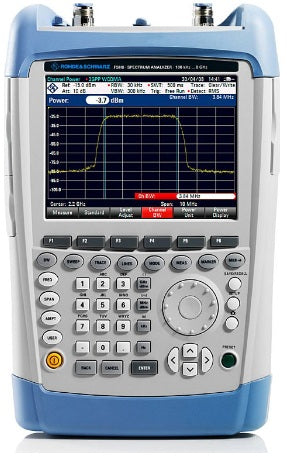

*The image is for reference only. See product specification for details.

Product specifications of Rohde & Schwarz FSH.18 (From Used-Line T&M Specifications)

  • Launch Date Apr-2007
  • Low end frequency limit 10 MHz
  • High End Frequency Limit 18 GHz
  • Resolution Bandwidth Min. 1 kHz
  • Resolution Bandwidth Max. 1 MHz
  • Amplitude Range DANL to + 20 dBm
  • Status --

The R&S FSH18 is the perfect handheld tool in the field for many different applications such as servicing microwave links, field strength measurements, and signal monitoring from 10 MHz up to 18 GHz.

  • Frequency range 10 MHz to 18 GHz
  • Displayed average noise level typ. -128 dBm (RBW 100 Hz, 3 GHz to 6 GHz)
  • Level accuracy: 1.5 dB (20 MHz to 6 GHz)
  • Resolution bandwidths 100 Hz to 1 MHz, 1 and 3 steps
  • Wide range of detectors: sample, max/min peak, auto peak, RMS
  • Battery operating time up to 3h
  • Weight only 2.5 kg
