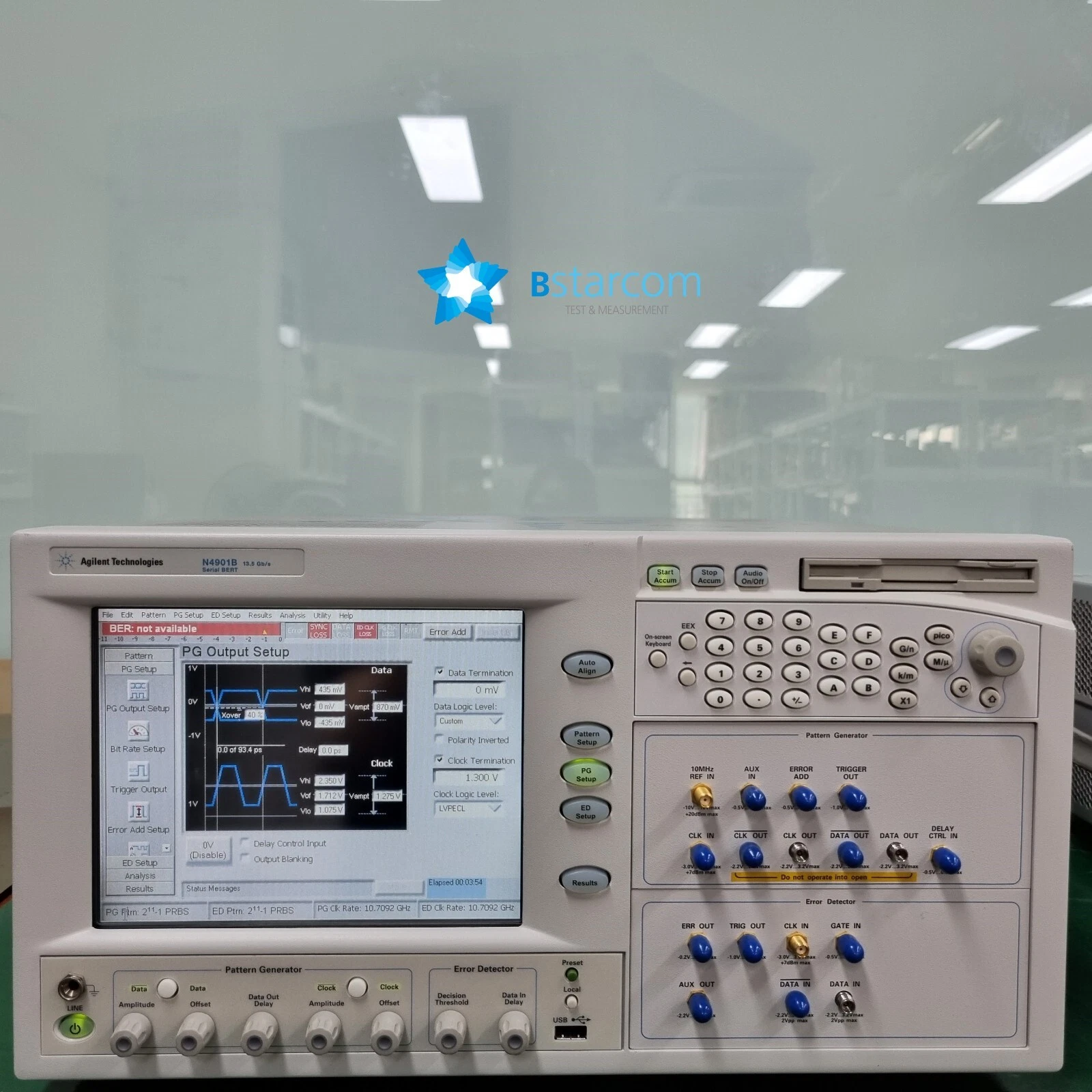

Agilent N4901B

Send Request
  • $16900

Send to a Friend
Flag of Korea (South)Equipment Location: Korea (South)
View Description>
Hide Description

Description of Agilent N4901B

Categories: Telecom, Datacom, BERTs, Error Analyzers

Manufacturer: Keysight Technologies (Agilent HP)

Model: N4901B

Condition: Used

Seller: Bstarcom

Agilent N4901B Serial BERT 13.5 Gb/s-WXP,100,101

Condition: Used

Product specifications of Agilent N4901B (From Used-Line T&M Specifications)

  • Launch Date Jan-2049
  • Alternative J-BERT N4903A High-Performance Serial BERT
  • Min. Data Rate 150 Mbps
  • Max. Data Rate 13.5 Gbps
  • Max. PRBS Pattern
    (2n-1)     31
  • Pattern Depth 1 bit to 33,554,432 bits
  • See also N4902B
  • Status Discontinued by Manufacturer

The new N4901B Serial BERT 13.5 Gb/s covers frequency ranges from 150 Mb/s to 13.5 Gb/s providing unmatched signal integrity and analysis capabilities. The N4901B is the industry-first serial BERT product to provide built-in true differential inputs/outputs, clock data recovery (CDR), enhanced jitter capabilities and unrivalled analysis and measurement functionalities for both present and future test needs. With its broad frequency range and new features, the N4901B Serial BERT 13.5 Gb/s sets a new standard for serial BER test equipment in the 10 Gb/s domain. The unique new capabilities of the instrument and its ability to address a broad range of applications and technologies in the semiconductor and communication industry will help customers to protect investment made in measurement instrumentation. The new N4901B Serial BERT 13.5 Gb/s provides comprehensive new software. The new "Measurement Suite" offers measurement and analysis features such as bathtub curve, output level, Q-factor, spectral jitter decomposition, fast eye mask, error location capture, etc. The System is operating with a wider data range from 150 Mb/s to 13.5Gb/s. 4 CDR ranges are implemented at 1 Gb/s, 3 Gb/s, 6 Gb/s and 10 Gb/. Also, the loop bandwidth at each CDR range was expanded. Furthermore with version B, customers can start with 7 Gb/s and upgrade to 13.5 Gb/s. More details are available in the new technical data sheets for BERT systems. Features: Frequency Range: 150Mb/s - 13.5 Gb/s True differential data generation and analysis Superior pulse performance Jitter modulation capability: 200ps, DC to 1 GHz Low intrinsic Jitter: < 1ps RMS TYP. Transition Time (10%-90%)s: < 25ps Integrated CDR: operates in data rate ranges form 1.0- 1.6 Gb/s 2.11 - 3.20 Gb/s, 4.23 - 6.40 Gb/s and 9.9 - 10.9 Gb/s Input Sensitivity: <50mV pp Intuitive Windows XP user interface: easy-to-use, easy-to-learn "Measuring Suite", which offers comprehensive measurement and analysis features Expandable software platform, which allows adding new software pieces in the future addressing upcoming trends and applications.
