Handheld Spectrum Analyzer 9kHz-13.6GHz,
(Model 13) R&S ID Number: 1314.2000.13 with preamplifier.
Options:
K40 = Remote Control via LAN or USB;
K44 = 3GPP WCDMA BTS/Node B Pilot Channel and EVM Measurement Appl.;
K46 = CMDA 2000 BTS Pilot Channel and EVM Measurement Appl.;
K47 = 1x EV DO BTS Pilot Ch. and EVM Measure. Appl.;
K50 = LTE FDD Downlink Pilot Ch. and EVM Measure. Appl.;
Z114= Precision Frequency Reference;
HA-Z203 = Battery Charger for HA-Z204 and HA-Z206;
HA-Z206 = Li-Ion Battery Pack 6.75Ah;
HA-Z221 = Hard Case;
HA-Z222 = Carrying Holster, incl. Chest Harness and Rain Cover.

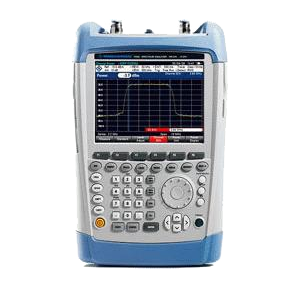

The R&S FSH13 spectrum analyzer is rugged, handy and designed for use in the field. Its low weight, its simple, well-conceived operation concept and the large number of measurement functions make it an indispensable tool for anyone who needs an efficient measuring instrument for outdoor work.
Model 23:
Frequency range: 9 kHz 13.6 GHz
High sensitivity:< –141="" dbm="" (1="" hz),="" with="" preamplifier="">< –161="" dbm="" (1="">
Demodulation bandwidth for analyzing LTE signals: 20 MHz
Low measurement uncertainty: < 1 dB
Measurement functions for all important measurement tasks related to the startup and maintenance of transmitter systems
Internal tracking generator and VSWR bridge with built-in DC voltage supply (bias)
Rugged, splash-proof housing for rough work in the field
Easy operation thanks to user configurable, automatic test sequences (wizard)
Easy handling due to low weight (3 kg with battery) and easy-to-reach function keys
€ 14,200 (net) $17,040 (US)
