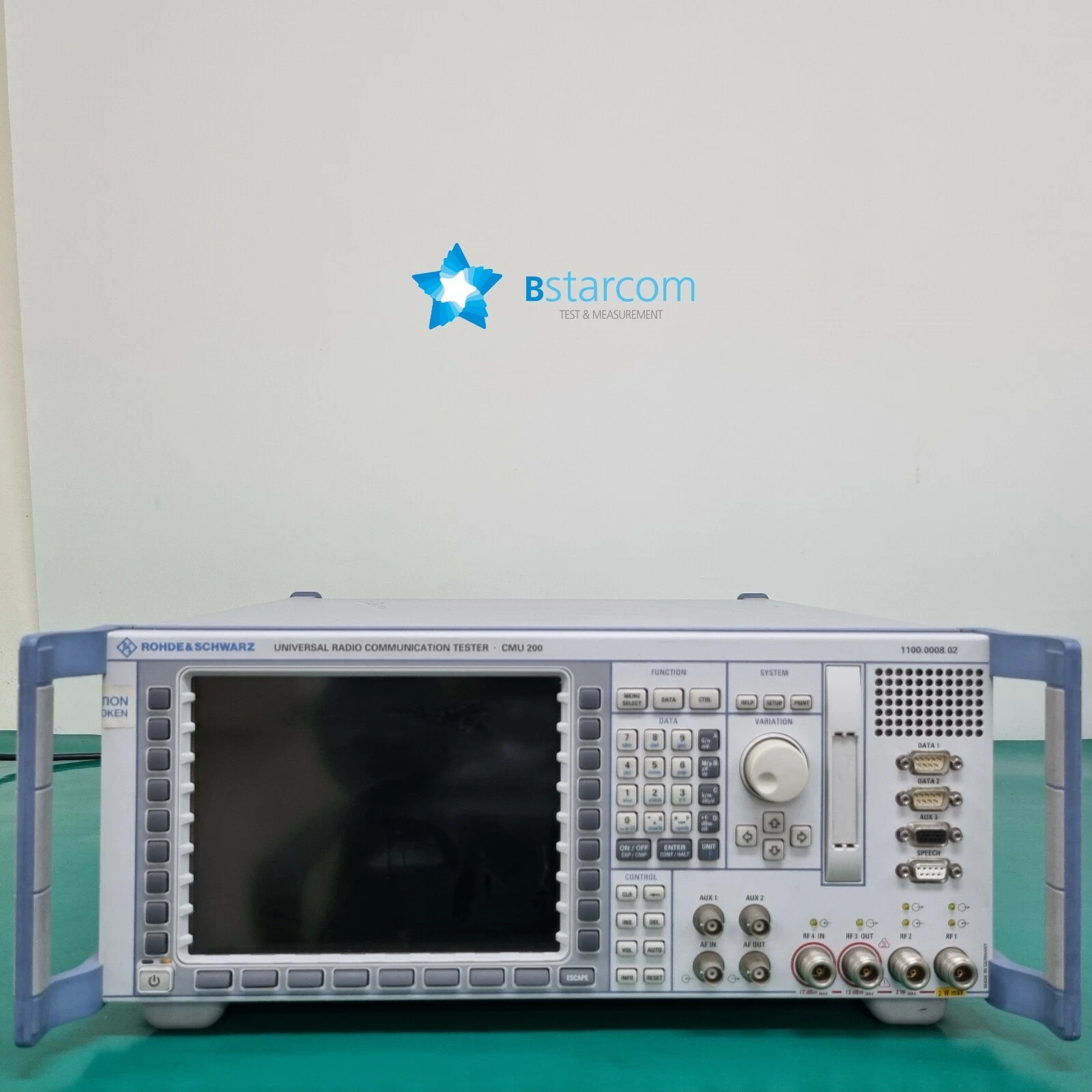

Rohde & Schwarz CMU200

Send Request
  • $3000

Send to a Friend
Flag of Korea (South)Equipment Location: Korea (South)
View Description>
Hide Description

Description of Rohde & Schwarz CMU200

Categories: Test Sets, RF Communications Test Sets

Manufacturer: Rohde & Schwarz

Model: CMU200

Condition: Used

Seller: Bstarcom

R&S CMU200 Universal Radio Communication Tester - many options

Condition: Used

Product specifications of Rohde & Schwarz CMU200 (From Used-Line T&M Specifications)

  • Launch Date Jan-2049
  • Status --

The R&S® CMU200 Universal Radio Communication Tester is a third-generation platform design that offers true scalable multimode functionality.

The base unit with its standard-independent module test provides any general purpose measurement facilities for the development of all kinds of standards within its wide and continuous frequency range. If extended by the appropriate options, the CMU200 offers the hardware and software necessary to handle your 3G, 2.5G and previous generation testing applications, including analog.

The completely modular design of hardware and software components eliminates unnecessary investments right from the start merely because a feature might be needed at some point in the future.

  • Maximum production output in a compact 4-rack-unit-high package with minimum power dissipation allows compact production space layout
  • If an expansion becomes necessary because your needs grow, the modularity of the CMU200 concept will make this easy. Many expansions may be installed on site. You pay for them only when you need them
  • With the intuitive CMU200 user interface, even less experienced users do not require extensive training
  • A new remote interface syntax reflects the inherent modularity of this real multimode tester
  • Extremely high-speed testing
  • Highly accurate measurements
  • Comprehensive spectrum analyzer
  • Fast switching between networks
  • Exceptional reliability
  • Options
    • B11: Reference OCXO, aging 2 × 10–7/year
    • B12: High-stability OCXO, aging 3.5 × 10–8/year; oven crystal with highest longterm stability
    • B17: Analog I/Q IF interface
    • B21: Unversal signaling unit; provides multistandard signaling hardware; required for WCDMA 3GPP FDD
    • B21: Universal signaling unit; includes signaling module for AMPS, TDMA, GSM/GPRS/EGPRS
    • B41: Audio generator and analyzer; includes audio frequency (AF) generator, voltmeter, distortion meter
    • B52: Internal versatile multimode speech coder/decoder; R&S® CMU-B21 necessary
    • B53: Bluetooth® extension; CMU-B21 necessary
    • B55: HD option for (E)GPRS application testing with more than 2 UL slots
    • B56: WCDMA (3GPP FDD) signaling module for CMU-B21 model 14
    • B68: Versatile baseband board for WCDMA (3GPP FDD) layer 1, DL and UL, non-signaling
    • B83: CDMA2000® 1xRTT signaling unit
    • B83: CDMA2000® 1xRTT signaling unit; required for CDMA2000® 1xEV-DO Rev. 0 and A signaling
    • B85: 8 k/13 k QCELP, 8k EVRC speech codec for R&S® CMU-B83 CDMA2000® 1xRTT signaling unit
    • B85: 8k/13k QCELP, 8k EVRC, EVRC-B speech codec for CMU-B83 model 22 CDMA2000® 1xRTT signaling unit
    • B87: Interface for extensive CDMA2000® 1xRTT /1xEV-DO data testing for CDMA2000® 1xRTT signaling unit CMU-B83; requires R&S® CMU-K87
    • B88: CDMA2000® 1xEV-DO Rev. 0 and A non-signaling generator for CMU-B83 model 12 CDMA2000® 1xRTT signaling unit
    • B89: CDMA2000® 1xEV-DO Revision 0 and A signaling module for CMU-B83 model 22 CDMA2000® 1xRTT signaling unit
    • B95: Auxiliary generator that covers the requirements of present BCCH by GSM/GPRS/EGPRS and application testing for (E)GPRS
    • B96: 2nd TX RF channel with full functionality; for generation of small-band signal (GSM BCCH, channel A) or of wideband signal (WCDMA BCCH, channel B)
    • B99: RF1 level range identical to RF2
    • K14: Stereo FM transmitter
    • Software packages, connectors, interfaces, couplers, Bluetooth antenna, SIM cards
