Wiltron 560-97A50-1

1479 Visitors viewed Rosenkranz Elektronik ads in the last 30 Days

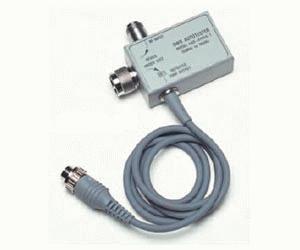

The Series 560-97 SWR Autotesters integrate a high directivity bridge, a detector, a low reflection test port, and a precision reference termination. The 560-97 Series units are broadband microwave measurement components that are used with
the Model 56100A Scalar Network Analyzer and with Series 54100A Scalar Measurement System for making fixed-frequency and swept-frequency return loss (SWR) measurements. Return loss measurements are used over a wide range of radio and microwave frequencies to check the performance of systems, subsystems, and microwave components such as amplifiers, directional couplers, attenuators, filters, splitters, and terminations.

• 38 dB directivity
• 10 MHz to 18 GHz range
• Impedance: 50 Ω
• Test port connectors to fit most measurement applications; avoids use of adapters
• 560-97N50-1: Type N(m) connection, 560-97NF50-1: Type N(f) connection
