Tektronix MDO3104 with MDO 3MS0

Send Request
Tektronix MDO3104 with MDO 3MS0
Image 2 of Tektronix MDO3104 with MDO 3MS0Image 3 of Tektronix MDO3104 with MDO 3MS0Image 4 of Tektronix MDO3104 with MDO 3MS0Image 5 of Tektronix MDO3104 with MDO 3MS0
  • $7,500

 Add to request cart
Send to a Friend
Flag of CanadaEquipment Location: Canada
View Description>
Hide Description

Description of Tektronix MDO3104 with MDO 3MS0

Categories: Oscilloscopes, Mixed Signal Oscilloscopes

Manufacturer: Tektronix

Model: MDO3104

Condition: Used

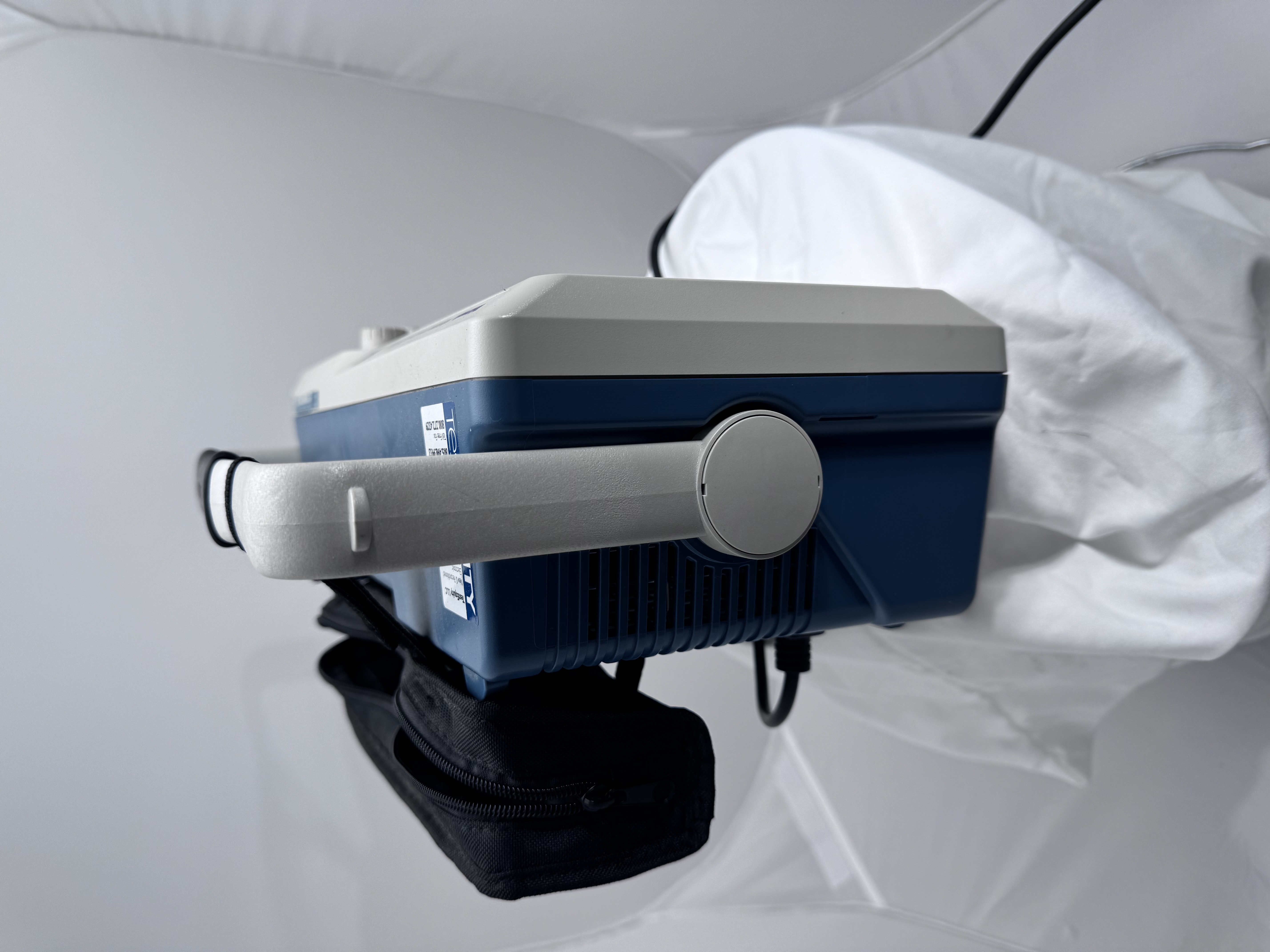

Tektronix MDO3104 4 Channel 100MHz 2.5 GS/s Mixed Domain Oscilloscope w/MDO3MSO

Tektronix MDO3000 Mixed Domain Oscilloscope (MDO) Series is the ultimate 6-in-1 integrated oscilloscope that includes an integrated spectrum analyzer, arbitrary function generator, logic analyzer, protocol analyzer, and digital voltmeter/counter. The MDO3000 is completely customizable and fully upgradeable. Add the instruments and performance you need now — or later.

At the core of the MDO3000 Series is a world-class oscilloscope, offering comprehensive tools that speed each stage of debug; from quickly discovering anomalies and capturing them, to searching your waveform record for events of interest and analyzing their characteristics and your device's behavior.

- 1 GHz
- 4 analog channels
​- Upgradable bandwidth to protect your investment
- 16 Digital channels upgrade included
- 5 GS/s sample rate
​-10 M record length on all channels
​-Standard 9 kHz to Oscilloscope Bandwidth Spectrum Analyzer (optional to 3 GHz)
​-5-digit DVM and Frequency Counter option enabled with post-purchase registration with Tektronix
​-FastAcq™ high-speed waveform capture
-Wave Inspector® Controls
-33 automated measurements and waveform histograms
-9 in. WVGA widescreen color display

MDO3MSO Add 16 digital channels; includes P6316 digital probe and accessories . One-time, permanent upgrade to any model enabled through single-use application module hardware key.

LOCATED IN CANADA. BUYER PAYS TARRIFS & DUTIES

Product specifications of Tektronix MDO3104 with MDO 3MS0 (From Used-Line T&M Specifications)

Today's integrated designs need an oscilloscope that is just as integrated - such as the MDO3000 Mixed Domain Oscilloscope (MDO) Series. It is the ultimate 6-in-1 integrated oscilloscope that includes an integrated spectrum analyzer, arbitrary function generator, logic analyzer, protocol analyzer, and digital voltmeter/counter. The MDO3000 is completely customizable and fully upgradeable. Add the instruments and performance you need now - or later.

MDO3104 specifications:

  • Analog channels: 4
  • Analog channel bandwidth: 1 GHz
  • Rise time (typical, calculated): 400 ps
  • Sample rate: 2.5 GS/s
  • Record length: 10 M
  • Digital channels with MDO3MSO option: 16
  • 1 RF channel: 9 kHz - 1 GHz (up to 3 GHz optional)
  • Arbitrary Function Generator outputs with MDO3AFG option: 1
  • Spectrum analyzer channels: 1
  • Standard spectrum analyzer frequency range: 9 kHz - 1 GHz
  • Optional spectrum analyzer frequency range with MDO3SA option: 9 kHz - 3 GHz
  • Vertical system analog channels:
    • Hardware bandwidth limits: 20 MHz or 250 MHz
    • Input coupling: AC, DC
    • Vertical resolution: 8 bits (11 bits with Hi Res)
  • Vertical system digital channels (with MDO3MSO option)
    • Input channels: 16 digital
    • Threshold selections: TTL, CMOS, ECL, PECL, User-defined
    • User-defined threshold range:  -15 V to +25 V
    • Maximum input voltage:  -20 V to +30 V
    • Minimum voltage swing: 500 mV
    • Input resistance: 101 kΩ
    • Probe loading: 8 pF
    • Vertical resolution: 1 bit
  • Horizontal system analog channels
    • Time base range: 400 ps/div to 1000 s/div
    • Maximum duration at highest sample rate (all/half channels): 4/2 ms
    • Channel-to-channel deskew range: ±125 ns
  • Horizontal system digital channels (with MDO3MSO option)
    • Maximum sample rate (Main): 500 MS/s (2 ns resolution)
    • Maximum record length (Main): 10 M
    • Maximum sample rate (MagniVu): 8.25 GS/s (121.2 ps resolution)
    • Maximum record length (MagniVu): 10k centered on the trigger
    • Minimum detectable pulse width (typical): 2 ns
    • Channel-to-channel skew (typical): 500 ps
