Preen AFC-11010

1817 Visitors viewed Valuetronics International Inc ads in the last 30 Days

Condition: New

Features:

• Output Power: Single Phase Output (0.5kVA to 120kVA)
• Output Frequency: Type A to Type E frequency range according to the application
• Output Voltage: 5~150V/10~300VL-N (520VL-L), Optional for custom output voltage range available
• Double conversion, Galvanic isolation input to input, Clean Output, THD: < 2% (Optional for <1%)
• Analog knob for adjusting V and Hz, LED display for showing output V, A, kW, Hz
• One single stand alone unit up to 2000kVA (not parallel connected multiple units) with high MTBF
• All models equipped with input breaker and output magnetic switch with safety protection
• Optional output EMI filter for EMC chamber power applications
• Optional overload capacity for motor or inductive type load
• Optional for environmental proof or outdoor applications
• Optional RS232 or RS485 remote controlling the output V and Hz (no monitoring available)

Applications:

• Burn-In, Aging Test
• Quality Assurance Test
• Clean Power, Chamber Power
• Military Maintenance Power
• Product Test and Verification
• Transformer Test

Specifications:

• Power (VA) - 10000.00
• Volts - 300.00
• Amps - 83.30
• Frequency - 60.00
• Phase - 1

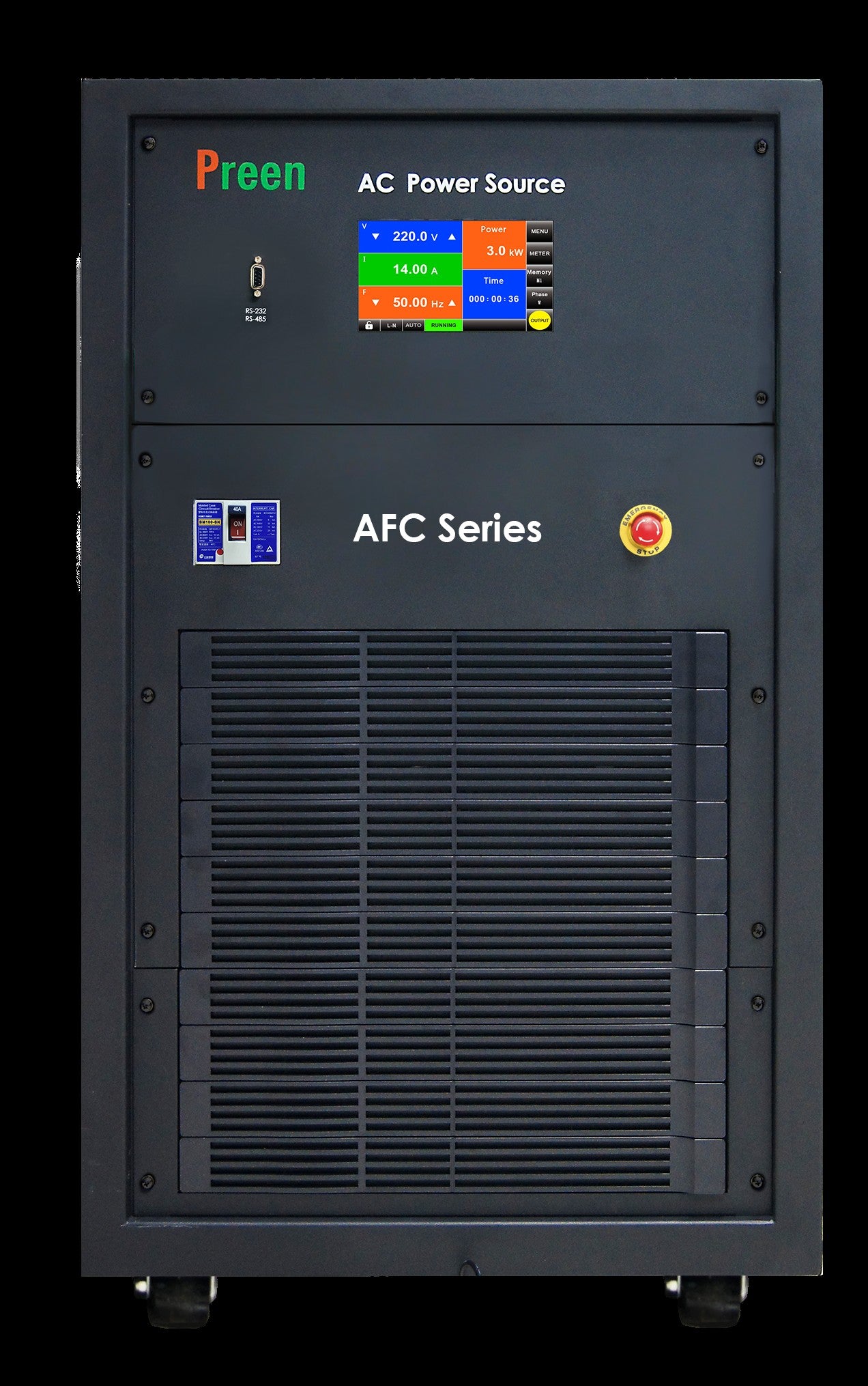

Preen’s AFC-11010 is an adjustable AC power source, provides double power conversion from a variety of inputs to pure clean sinusoidal output, isolate the harmonics from the grid system, fully adjustable across the output voltage and frequency ranges.
