Keysight Technologies (Agilent HP) N9040B

Send Request
  • $130000

Send to a Friend
Flag of Korea (South)Equipment Location: Korea (South)
View Description>
Hide Description

Description of Keysight Technologies (Agilent HP) N9040B

Categories: Analyzers Signal, Miscellaneous Signal Analyzers

Manufacturer: Keysight Technologies (Agilent HP)

Model: N9040B

Condition: Used

Seller: Bstarcom

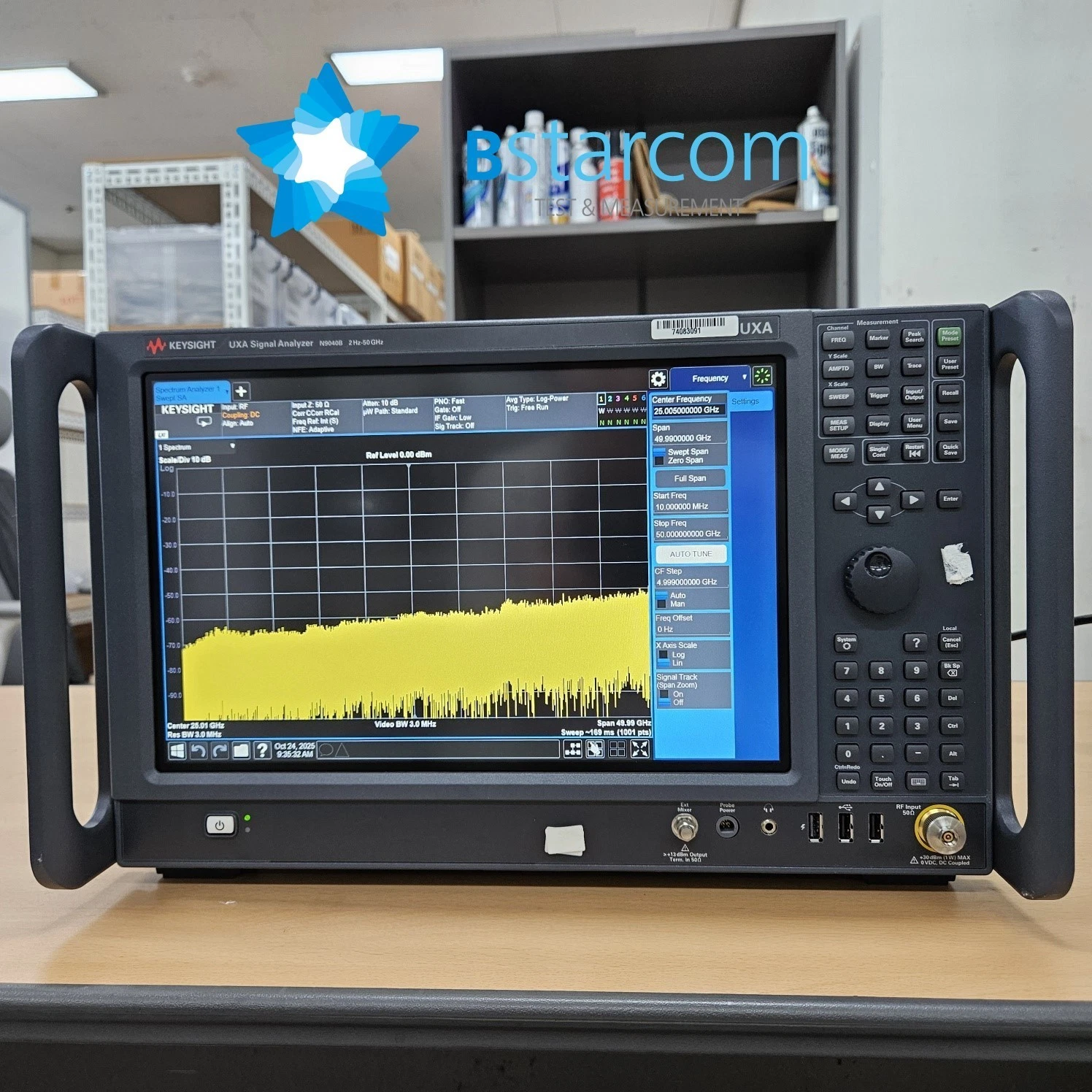

Keysight N9040B UXA Signal Analyzer, 2 Hz to 50 GHz-W10,MTU,PC6S,SSD,550,B25,,,

Condition: Used

Product specifications of Keysight Technologies (Agilent HP) N9040B (From Used-Line T&M Specifications)

  • Launch Date Oct-2014
  • Low end frequency limit 3Hz
  • High End Frequency Limit 26.5 GHz
  • Resolution Bandwidth Min. 1Hz
  • Resolution Bandwidth Max. 8 MHz
  • Amplitude Range DANL to +30 dBM (with Preamp Off); DANL to +24 dB with Preamp On
  • Status --

The UXA is the flagship of the X-Series signal analyzers and is built on proprietary technology. It provides frequency coverage up to 26.5 GHz and can be extended to 1.1 THz using the standard external mixing functionality. The N9040B combines high-quality analysis bandwidth to 510 MHz, full-band real-time analysis and industry-leading phase noise performance. The UXA also uses a streamlined, touch-driven interface on the large 14.1” display that simplifies measurement setup through the familiar X-Series menu structure.. With its wider, deeper views of elusive and wideband signals, the UXA enables you to take your designs further in aerospace, defense, commercial communications and more.
The N9040B UXA signal analyzer is a member of the X-Series spectrum analyzers, which is an evolutionary approach to signal analysis that spans instrumentation, measurements and software. It gives you the flexibility to satisfy your business and technical requirements across multiple products and programs—now and in the future.

Model numbers according to frequency range options (DC coupled):

  • N9040B-508 (Option 508): 3 Hz to 8.4 GHz
  • N9040B-513 (Option 513): 3 Hz to 13.6 GHz
  • N9040B-526 (Option 526): 3 Hz to 26.5 GHz

N9040B features and specifications:

  • 3 Hz to 8.4, 13.6, or 26.5 GHz; extend frequency to 110 GHz with Keysight's smart mixers and up to THz with other vendors' mixers
  • 10 MHz (standard); 25, 40, 255 or 510 MHz analysis bandwidth
  • Fast sweep capability (standard); fast power measurements (optional)
  • Full-band real-time spectrum analyzer capabilities with 100% probability of intercept for signal duration as short as 3.84 µs
  • ±0.16 dB absolute amplitude accuracy
  • >78 dBc spurious free dynamic range, full band
  • -136 dBc/Hz phase noise at 1 GHz carrier, 10 kHz offset
  • -172 dBm displayed average noise level (DANL) with preamplifier and Noise Floor Extension (NFE)
  • Streamlined, 14.1 inch touch-driven interface
  • LXI compliant, SCPI and IVI-COM
  • USB 3.0, USB 2.0, 1000Base-T LAN, GPIB
  • Open Windows 7 operating system (standard)
  • N9068C phase noise measurement application
  • Advanced analysis of >75 signal formats; 89600 VSA software runs inside the UXA
  • Low noise path, external mixing, microwave preselector bypass, wideband IF output and enhanced display package (all standard)
  • Keysight's PowerSuite one-button power measurements (standard)
