13 FSC3.13

1817 Visitors viewed Valuetronics International Inc ads in the last 30 Days

Send Request
  • $12105

Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of 13 FSC3.13

Categories: T&M, Miscellaneous Test Equipment

Model: FSC3

Condition: Used

Seller: Valuetronics International Inc

FSC3.13 Rohde and Schwarz New

Condition: New

Features:

  • Frequency range: 9 kHz to 3 GHz
  • This model includes a tracking generator
  • Covers a wide range of applications including simple development tasks, production, training RF professionals, as well as service and maintenance
  • Features a wealth of functions for simplifying and speeding up development and testing of RF products
  • Optional preamplifier increases sensitivity for measuring weak signals (part number FSC-B22)
  • Smallest footprint in its class at only 3 HU, ½ 19”
  • Easy to operate - all important settings are available via proper hardkeys, supplemented by softkeys on lower display edge
  • Its DANL, TOI and phase noise make it ideal for many standard measurement applications
  • General-purpose spectrum analysis presets for spectral characteristics, e.g. harmonics, AM modulation depth, ACLR, etc. are included as standard

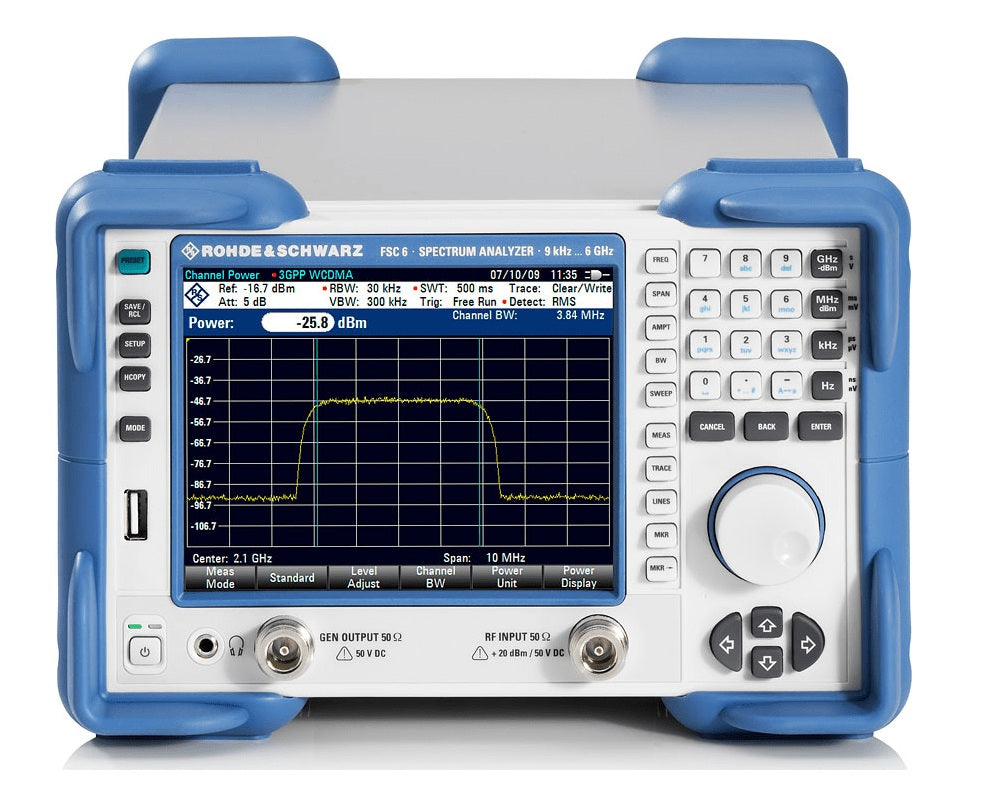

The R&S FSC is a compact, cost-efficient solution that offers all essential features of a professional spectrum analyzer with Rohde & Schwarz quality. It covers a wide range of applications from simple development tasks to production, or can be used for training RF professionals. Moreover, it is ideal for applications in service or maintenance. The R&S FSC features a wealth of functions for simplifying and speeding up the development and testing of RF products. Its good RF characteristics and its high measurement accuracy help to ensure reliable and reproducible measurement results.

Owing to its compact design, the R&S FSC takes up only a minimum of space on a lab bench. When installed in a rack, two R&S FSC or one R&S FSC and one R&S SMC signal generator situated next to each other fit into the 19" space.

Several Versions Available

The FSC is available in two frequency ranges, as well as with or without a tracking generator. An optional preamplifier (part number FSC-B22) is also available for each, which increases sensitivity for measuring weak signals.

Easy Operation

The R&S FSC is operated via the keyboard and a rotary knob with an integrated enter function. All important settings such as frequency, bandwidth, span or marker can be directly accessed via hardkey buttons. Clearly arranged softkeys at the lower edge of the touch screen provide additional menu selections.

R&S FSCView Software for Recording Measurement Results

The R&S FSC View software that comes with the analyzer is an easy-to-use tool for managing, evaluating and documenting measurement results.

Benefits and Key features

  • Data transfer between the R&S FSC and a PC via USB/ LAN
  • Easy postprocessing of measurement results by means of data export in ASCII or MS Excel format
  • Storage of graphics data in standard formats
  • Printout of measurement results, including the instrument settings used
  • Simple comparison of measurement results
  • Subsequent analysis of the measurement results using markers
  • Subsequent display of limit lines
  • Editor for creating limit lines and antenna factors
Remote-control Operation

All functions of the R&S FSC can be controlled via the USB or LAN interface using SCPI-compatible remote-control commands. For this purpose, drivers for LabWindows/CVI, LabView, VXI-Plug&Play and Linux are available.

Product specifications of 13 FSC3.13 (From Used-Line T&M Specifications)

  • Launch Date Jan-2049
  • Low end frequency limit 9 kHz
  • High End Frequency Limit 3 GHz
  • Resolution Bandwidth Min. 10Hz
  • Resolution Bandwidth Max. 3 MHz
  • Amplitude Range Display range: Displayed noise floor to +30 dBm
  • See also FSC6
  • Status --

The R&S®FSC is a compact, cost-efficient solution that offers all essential features of a professional spectrum analyzer with Rohde & Schwarz quality. It covers a wide range of applications from simple development tasks to production, or can be used for training RF professionals. Moreover, it is ideal for applications in service or maintenance. The R&S®FSC features a wealth of functions for simplifying and speeding up the development and testing of RF products. Its good RF characteristics and its high measurement accuracy help to ensure reliable and reproducible measurement results.

Four different R&S®FSC models are available in the frequency range from 9 kHz to 3 GHz or 6 GHz. Separate models with tracking generator are available for each frequency range. An optional preamplifier that is available for all models increases sensitivity for measuring weak signals. Owing to its compact design, the R&S®FSC takes up only a minimum of space on a lab bench. When installed in a rack, two R&S®FSC or one R&S®FSC and oneR&S®SMC signal generator situated next to each other fit into the 19” space.

  • Frequency range 9 kHz to 3 GHz or 6 GHz
  • Resolution bandwidths 10 Hz to 3 MHz
  • High sensitivity (< –141 dBm (1 Hz), with optional preamplifier < –161 dBm (1 Hz ))
  • High third order intercept (> 10 dBm, typ. 15 dBm)
  • Low measurement uncertainty (< 1 dB)
  • Internal tracking generator (model .13/.16)
  • Storage of measurement results on USB stick
  • LAN and USB interface for remote control and transfer of measurement data
  • R&S®FSCView software for simple documentation of measurement results
  • Compact dimensions
  • Low power consumption (12 W)
  • Noise marker for determining the noise power referenced to 1 Hz measurement bandwidth
  • Frequency counter with 0.1 Hz resolution
  • Limit line monitoring (pass/fail function) for indicating whether the DUT complies with defined limits
  • Modulation depth measurement of AM-modulated signals
  • Measurement of harmonics and total harmonic distortion
  • AM/FM audio demodulator (audio via built-in loudspeaker or via headphones)
  • Scalar transmission measurement for fast and simple determination of the transmission characteristics of DUTs such as cables, filters or amplifiers (available for the R&S®FSC models .13 and .16 with tracking generator)
  • Location of EMC problems on printed boards using the R&S®HZ-15 near-field probe set for emission measurements from 30 MHz to 3 GHz
  • Field-strength measurements taking into account the specific antenna factors of the connected antenna, the field strength being displayed directly in dBμV/m
  • Power measurement on pulsed signals in the time domain with predefined settings for the GSM and EDGE mobile radio standards
  • Channel power measurement in a definable transmission channel with predefined settings for 3GPP WCDMA, cdmaOne, CDMA2000® and LTE mobile communications standards
  • Measurement of occupied bandwidth (OBW)
  • Adjacent channel power, absolute or referenced to the TX carrier for up to 12 channels and 12 adjacent channels
  • Gated sweep for displaying the modulation spectrum of burst signals such as GSM or WLAN
  • Measurement of spurious emissions
