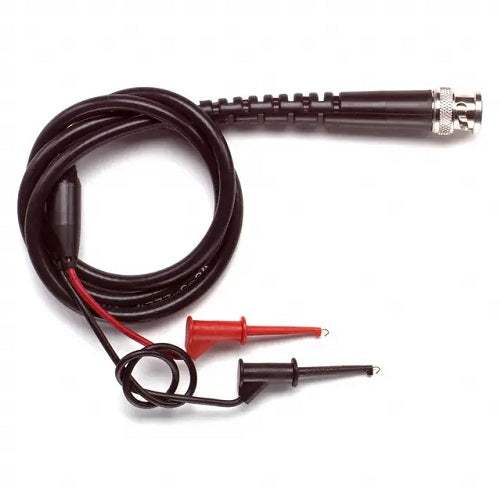

Pomona 4777-K-24

1817 Visitors viewed Valuetronics International Inc ads in the last 30 Days

Condition: New

Features:

• BNC, grabbers and breakout wires are molded directly to the cable for added pull strength.
• Micrograbber® Test Clip hook is gold plated Beryllium Copper for durability and low contact resistance.
• BNC connector features PTFE dielectric and gold plated center contact for optimal electrical performance and BNC body is tarnish resistant.

Specifications:

• BNC (Male): Body: Brass, Nickel Plated
• Center Pin: Brass, Gold Plated
• Dielectric: PTFE
• Impedance: 50 Ohms
• Strain Relief and Molded Breakout: PVC, Color: Black
• Breakout Wires: 20 AWG Stranding 41 x 36 t. c., PVC Insulated, .087” (2,21 mm) O.D.
• Color: One Black, One Red Marking: Pomona 3785-X-xx
• Micrograbber: Contact, Beryllium Copper, Gold Plated
• Spring: Stainless Steel
• Insulation: Nylon 6 (Fire Retardant UL94V-0), Color Matches Wire Color
• Operating Voltage: 150 VRMS/VAC Max
• Operating Temperature: 50°C (+122°F) Max.

The 4777-K-24 is an accessory from Pomona.
