Advantest ADVANTEST Q8341 350 to 1000 nm Optical Spectrum An

Send Request
  • $15000

Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of Advantest ADVANTEST Q8341 350 to 1000 nm Optical Spectrum An

Categories: Fiber Optics Comm, Optical Spectrum Analyzers

Manufacturer: Advantest

Model: Q8341

Condition: Used

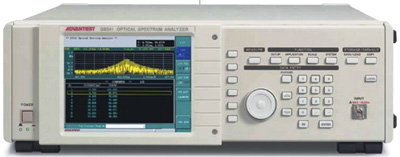

ADVANTEST Q8341 350 to 1000 nm Optical Spectrum Analyzer Used ADVANTEST Q8341

The Advantest Q8341 is an optical spectrum analyzer for visible radiation with a wavelength range of 350 nm to 1000 nm. It uses a Fourier spectrum system with a Michelson interferometer which allows it to measure coherence. With its narrow wavelength resolution of 0.01 nm, the Q8341 is very effective for the evaluation of not only CD/DVD laser diodes, but also for blue-violet laser diodes. In addition, the built-in He-Ne laser acts as a wavelength reference to ensure a high wavelength measurement accuracy of ±0.01nm. Finally, with its fast 0.5 s measurement speed, the Q8341 is ideal for evaluating temperature characteristics of system components. Specifications. Wavelength Measurement range: 350 to 1000 nm. Wavelength Measurement Accuracy Standard: ±0.05 nm. Wavelength Measurement Resolution Standard: 0.05 nm. Level Input sensitivity: –50 dBm or less (350 to 1000 nm), –55 dBm or less (400 to 900 nm). Maximum input power: +10 dBm. Level Accuracy: ±1.0 dB (780nm, Input level of –10 dBm ). Level Scale: 0.2, 0.5, 1.0, 2.0, 5.0, 10 dB/div and Linear. Dynamic range: 30 dB or more. Coherence Max. analysis length Standard: 10.3 mm. Input return loss: 30 dB. Measurement time CW Mode Standard: 2 s or less. Optical input Connector: FC type. Applicable fiber: 50/125 GI fiber. I/O interface: GPIB (IEEE 488.2), Ethernet (10/100 Base), VGA output, USB port, PS/2 Mouse. Display: 6.5 inch color LCD (640 x 480 dots). Options. 70, built-in high-speed sweep and coherence length extension.

Product specifications of Advantest ADVANTEST Q8341 350 to 1000 nm Optical Spectrum An (From Used-Line T&M Specifications)

  • Launch Date Jan-2049
  • Form Factor Benchtop
  • Instrument Type Michelson interferometer
  • Low end wavelength limit 350 nm
  • High End Wavelength Limit 1 µm
  • Wavelength Resolution 10 pm
  • Wavelength Accuracy 0.01 nm
  • Dynamic Range 30 dB or moredB
  • Status Discontinued by Manufacturer

The Optical Spectrum Analyzer Q8341 (Advantest) uses a Michelson interferometer in a wavelength range of 350 to 1000 nm. The mechanical configuration of the interferometer allows a resolutions of 1 pm or 1 GHz in the frequency mode. This resolution as well as a measurement accuracy of 10 pm for interferometers of this size cannot be attained with monochromators, thus allowing accurate measurement of high-grade optical components. It also enables the fastest measurement speed in the world - 0.5 s. This highest resolution is particularly useful for the analysis of blue and blue-violet laser diodes, making the Q8341 an excellent choice for use in research on next-generation laser diodes and the increasingly smaller optical pick-ups. The use of the Fourier spectroscopy enables true measurement of the coherence length with a resolution of up to 1 µm. Q8341 allows a value of up to 40 mm to be analyzed. The evaluation itself is made automatically at a keystroke. In the spectral range a curve fitting function can be used. The built-in HeNe laser as the wavelength source allows a long-term calibrated wavelength performance. The OSA features a small size and only 15 kg weight.

  • Wavelength range 350 to 1000 nm
  • Max. resolution 0.01 nm
  • Measurement accuracy 0.01 nm
  • Fast sweep speed 0.5 s
  • Coherence measurement to 40 mm with 1 µm resolution
