Aeroflex 2052 The 2050 series of digital and vector signal generators Call


Aeroflex 2052 (2050 Series) Main Features and Specifications

Aeroflex 2052

  Aeroflex 2052 Specs (122.7 KB)
Frequency Range Min.  10.0 kHz
Frequency Range Max.  5.40 GHz
Modulation  FSK, PSK, QAM
Output Power  144 dBm to +13 dBm
Freq. Resolution  100.0 mHz
Status -
See also 2050 , 2051
Aeroflex

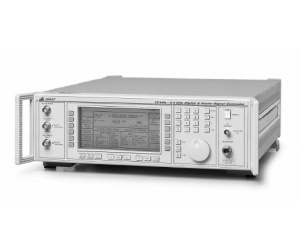

The 2050 series of digital and vector signal generators covers the frequency range 10 kHz to 1.35 GHz (2050), 10 kHz to 2.7 GHz (2051) and 10 kHz to 5.4 GHz (2052). These instruments are suitable for a wide range of applications including the testing of new digital communication systems.

The 2050 series signal generators have a large screen dot matrix display with softkey function selection which allows flexibility of operation. Hardkey and data entry key together with a rotary control knob are also provided. The output may be modulated using ΦM, FM, AM, IQ vector or complex digital modulation. Pulse modulation is optional.

  • PSK, FSK, QAM, GMSK
  • I and Q modulation to 10 MHz (1 dB bw.)
  • External digital data input Internal PRBS data source
  • Excellent accuracy and stability
  • Envelope control for RF bursts
  • Programmable channel filter characteristics
  • Variable data rate control
  • NADC, PDC, GSM, TETRA, plus others
  • Wide band DCFM for fast FSK
  • Baseband I & Q outputs
