BK Precision 4075:

4 found Specs Page 1 of 1  PREV   NEXT
This page lists all the BK Precision 4075's on Used-Line.com. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from 1495.0 to 1495.0 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.
Items from the last 24 Hours / Week / Month
Location Price
Get Pricing and Quotes -
BK-4075 B&K Precision 4075 Arbitrary Waveform / Function Generator, 25 Call
BK PRECISION 4075 25MHz Arbitrary/Function Generator $1495
BK Precision 4075 25MHz Function/Arb Generator $1495
BK Precision 4075 25MHz, Arbitrary/Function Generator Call


BK Precision 4075 (Arbitrary Function Generators) Main Features and Specifications

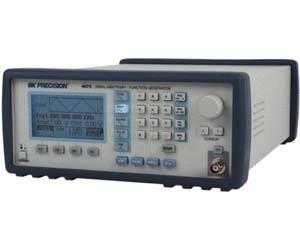

BK Precision 4075

  BK Precision 4075 Specs (442.9 KB)
Frequency Range Min.  1.0 uHz
Frequency Range Max.  25.0 MHz
Freq. Resolution  1 uHz
Waveform Outputs  Sine, Square, Triangle, Ramp, Pulse, Noise, Sin(x)/x, Gaussian noise
Modulation  AM, FM, FSK
Status -
Launch Date Feb-2009
See also 4078
BK Precision

The 4075 is a versatile high performance function/arbitrary waveform generator with the largest arbitrary memory depth in its class. The generator combines the ability to produce nearly any conceivable arbitrary waveform with accuracy and precision and a DDS architecture offering easy to use conventional function generator capabilities. Arbitrary waveforms have 14 bit amplitude resolution, 100 MSa/s sample rate and up to 400,000 points length. Waveforms can be output in continuous, triggered, gated or burst modes. The instrument can be remotely controlled using SCPI-compliant commands via RS232.

Extensive features such as internal or external AM, FM and FSK modulation along with versatile sweep capabilities and variable edge pulse generation make this generator suitable for a wide range of applications including electronic design, sensor simulation and functional test.

  • 14-bit, 100 MSa/s, 400 k point Arbitrary Waveform Generator
  • 25 MHz Sine / 25 MHz Square waveforms
  • Predefined Pulse, Ramp, Triangle, Noise, Sin (X)/X, Exponential and Gaussian waveforms
  • AM, FM and FSK modulation
  • 10 mVpp to 10 Vpp with 1 mVpp settable amplitude resolution
  • Large graphical LCD shows a detailed output waveform representation
  • Flexible rear panel interface
  • Flexible memory management
  • Versatile noise generation
  • Fully programmable markers
  • Fully protected output
  • Closed case calibration
  • Arbitrary waveform editing software included
  • SCPI compliant command set
  • GPIB option
