GW Instek SFG-1003:

5 found Specs Page 1 of 1  PREV   NEXT
At, you'll find GW Instek SFG-1003s from trusted, professional sellers around the globe at a variety of different prices. Get a quote now from one of our trusted sellers for a GW Instek SFG-1003 - find what you need quickly and easily. If you don’t find what you’re looking for in the SFG-1003 listings below, post a wanted ad to our database of thousands of equipment dealers.
Items from the last 24 Hours / Week / Month
Location Price
Get Pricing and Quotes -
GW INSTEK SFG-1003 DDS Function Generator 0.1Hz~3MHz $170
Instek SFG-1003 3MHz DDS Function Generator $170
Instek SFG-1003 Function Generator, 0.1Hz to 3MHz $170
Instek SFG-1003 3MHz, DDS Function Generator $170
GW Instek SFG-1003 Function Generator $170

GW Instek SFG-1003 (SFG-1000 Series) Main Features and Specifications

GW Instek SFG-1003

  GW Instek SFG-1003 Specs (72.5 KB)
Frequency Range Min.  100.0 mHz
Frequency Range Max.  3.0 MHz
Freq. Resolution  100 mHz
Waveform Outputs  Sine, Square, Triangle, TTL
Modulation  --
Status -
See also SFG-1013
GW Instek

The SFG-1003 is a 3 MHz DDS function generator. The SFG-1000 is an economical series of function generators with high accuracy and highly stable output. The design is based on the DDS (Direct Digital Synthesized) technology embedded in a large scale FPGA. The function generator provides Sine, Square, Triangle, and TTL waveform outputs.

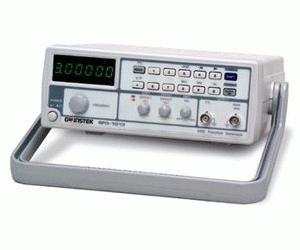

(Image shown is of SFG-1013.)

  • DDS Technology and FPGA Chip Design
  • Frequency Range: 0.1Hz~3MHz
  • High Frequency Accuracy: ± 20ppm
  • High Frequency Stability: ± 20ppm
  • Maximum Frequency Resolution: 100mHz
  • Low Distortion Sine Wave: -55dBc, 0.1Hz~200kHz
