Spanawave-Formerly Gigatronics 2550B Opts: 17A/18/26D/28 Call
Spanawave-Formerly Gigatronics 2550B Opts: 17A/18/26D Call
Spanawave-Formerly Gigatronics 2550B Microwave Signal Generator - (100 Call
Spanawave-Formerly Gigatronics 2550B Opts: 17A/18/26D/28/43 Call
Spanawave-Formerly Gigatronics 2550B Opts: 18 Call

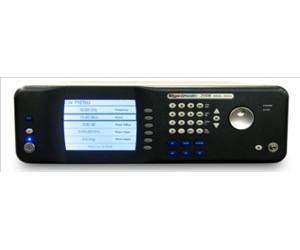

Giga-tronics 2550B (2500B Series Microwave Signal Generator) Main Features and Specifications

Giga-tronics 2550B

Frequency Range Min.  2.0 GHz
Frequency Range Max.  50.00 GHz
Modulation  AM, FM, Pulse, Phase
Output Power  6 dBm, 15 dBm with option
Freq. Resolution  1.0 mHz
Status -
Giga-tronics

The 2550B Microwave Signal Generator is a high-performance CW and swept frequency signal source with high signal purity, high output power, fast frequency switching speed and a full suite of analog modulation capability.  The 2550B Microwave Signal Generator features high time base stability, frequency resolution of 0.001 Hz and ultra-low phase noise, harmonics and spurious for applications requiring clean pure signals. Modulation capability includes amplitude modulation (AM), frequency modulation (FM), phase modulation and high-speed pulse modulation (PM) with pulse width as low as 10 ns. Remote programming capability is over GPIB (IEEE-488) or Ethernet LAN.

The 2500B series Microwave Signal Generator utilizes new Advanced Synthesizer Technology that delivers excellent close in phase noise performance of -77dBc @ 100 Hz and -96dBc @ 1KHz and an ultra low phase noise performance of -109 dBc @ 10 kHz and 100 kHz offset on a 10 GHz carrier frequency.

Every 2500B Microwave Signal Generator comes with Spanawave/Giga-tronics Automation Xpress, a PC based software package designed for enhanced user interface and automatic test systems. The Automation Xpress CD includes a full-featured plug-and-play driver and soft front panels to provide the ATE system integrator with everything needed to get up and running fast. A comprehensive LIST mode, Command-Line interpreter with script and loop capability, and GPIB traffic monitoring are just a few of the many features a test system programmer will appreciate when developing and debugging Test Program Sets.

Options:

  • 17A: Add Internal and External Modulation Suite (includes internal function generator)
  • 17B: Add External Modulation Suite
  • 18: Add 100 kHz to 2 GHz Frequency Range (Standard on the 2502B model)
  • 20: Add High RF Output Power
  • 22: Move RF Output Connector to Rear Panel
  • 26D: Add 90 dB Mechanical Step Attenuator
  • 28: Add Ultra-Low Close-in Phase Noise
  • 29: Add Fast Frequency Switching Speed
  • 32: Add Narrow Pulse Width ≤ 100 ns (Requires Option 17A or 17B)
  • 44: Replace Standard Front Panel with Blank Front Panel (Requires Option 22)
  • 46: Add Rack Slide Kit
