Tektronix TLA7S16 $8700
Tektronix : TLA7S16 Serial Analyzer Module $1750
TLA7S16 - Tektronix Serial Data Analyzers Call
Tektronix TLA7S16 8/16 Channel Serial Analyzer Modules with 32M 8b/10 Call
Tektronix TLA7S16 Logic Analyzer Module, Serial Analysis $9400

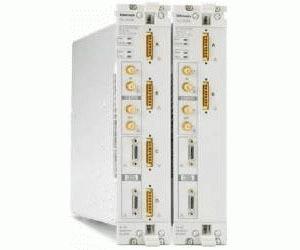

Tektronix TLA7S16 (TLA7Sxx Serial Analyzer Modules) Main Features and Specifications

Tektronix TLA7S16

  Tektronix TLA7S16 Specs (322.8 KB)
Status -
Launch Date Sep-2007
See also TLA7S08
  • 8/16 Channel Serial Analyzer Modules with 32M 8b/10b Symbols Memory Depth per Channel
  • 2.5 Gb/s and 5 Gb/s Acquisition Speed for PCI Express 1.0 and PCI Express 2.0
  • Frequency Margining at 2.5 Gb/s +/- 10% or 5.0 Gb/s +/- 10%
  • Supports x1, x2, x4, x8, and x16 PCI Express Links
  • Sync to L0s within 12 FTS Packets (typical)
  • Track 2.5 Gb/s to 5.0 Gb/s Data Rate Change
  • Dynamically Track Changes in Link Width
  • Powerful Trigger State Machine Spans all Layers of the Protocol (Physical, Data Link, and Transaction)
  • Hardware Filtering Extends Link Capture Time
  • Compression Probing System Provides Minimal Intrusion on Circuits
  • Internal or External Reference Clock with or without Spread Spectrum Clocking (SSC)
  • Protocol Decode and Error Reporting in Listing and Waveform Views
  • Real Time Link Status Indicators
