Get Pricing and Quotes -
Anritsu : MG3631A-02 Synthesized Signal Generator, 10kHz to 1040MHz $1750
Anritsu MG3631A Minimum Frequency 0.1 MHz Maximum Frequency 1040 MHz Call
Anritsu MG3631A 0.1 to 1040 MHz Synthesized Signal GeneratorThe Anrits Call
The MG3631A is a 1.04 GHz RF generator from Anritsu. An RF generator Call

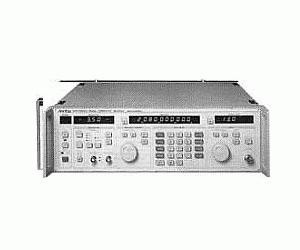

Anritsu MG3631A (Synthesized Signal Generators) Main Features and Specifications

Anritsu MG3631A

Frequency Range Min.  100.0 kHz
Frequency Range Max.  1.04 GHz
Modulation  AM, FM
Output Power  -143 dBm to +13 dBm
Freq. Resolution  10.0 Hz
Status Discontinued
Discontinuance Date Jan-2005
See also MG3632A
Anritsu
  • Minimum Frequency 0.1 MHz
  • Maximum Frequency 1040 MHz
  • Frequency Resolution 10 Hz
  • Time base stability 0.0000002 /day
  • Frequency Switching Time 150 ms
  • Minimum Output Power -143 dBm
  • Maximum Output Power 13 dBm
  • Power Resolution 0.1 dB
  • Output Accuracy 1.5 dB
  • Output Impedance 50 Ohm
  • Minimum Single-Side-Band Noise -133 dBc/Hz
  • Maximum Single-Side-Band Noise -124 dBc/Hz
  • Harmonics (noise) -30 dBc
  • Non-harmonics (noise) -60 dBc
  • Modulation AM,FM,
  • External Modulation Inputs(Types) Yes
